Automotive-grade SMD/SMT chip resistor with 180mΩ resistance and 1% tolerance. This 1206 (3216 metric) case code component features metal foil technology, a 2-termination design, and a maximum power dissipation of 750mW. Operating across a wide temperature range of -55°C to 155°C, it is lead-free and packaged on tape and reel.
Package1206
Resistance180mR
Quick Jump:
Technical Specifications
Susumu KRL1632E-M-R180-F-T5 technical specifications.
General
| Case Code (Imperial) | 1206 |
| Case Code (Metric) | 3216 |
| Package/Case | 1206 |
| Features | Automotive AEC-Q200 |
| Height | 0.5mm |
| Lead Free | Lead Free |
| Length | 3.2mm |
| Max Operating Temperature | 155°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 750mW |
| Number of Terminations | 2 |
| Packaging | Tape and Reel |
| Ratings | AEC-Q200 |
| Resistance | 180mR |
| Series | KRL |
| Technology | METAL FOIL |
| Termination | SMD/SMT |
| Tolerance | 1% |
| Weight | 0.000466oz |
| Width | 1.6mm |
Compliance
| RoHS | Not Compliant |
Datasheet
Susumu KRL1632E-M-R180-F-T5 Datasheet
Download the complete datasheet for Susumu KRL1632E-M-R180-F-T5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

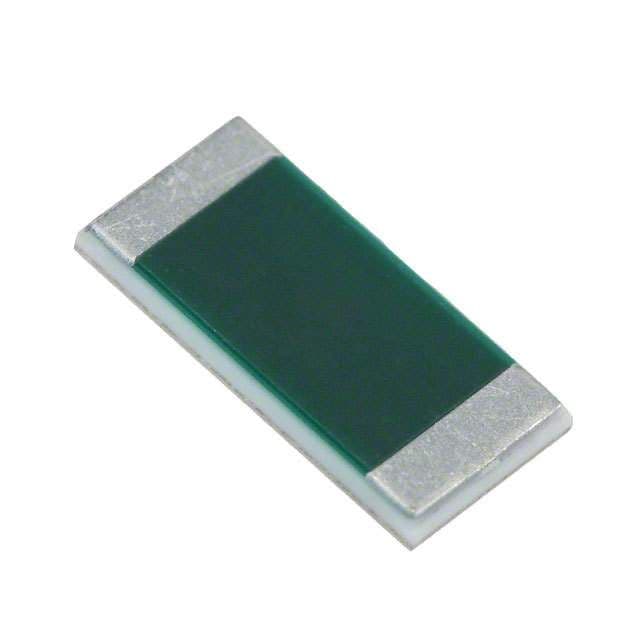

Product Images
