Automotive-grade 3W chip resistor with 7mR resistance and 1% tolerance. Features METAL FOIL technology in a 2512 (6432) SMD/SMT package, measuring 6.3mm L x 3.1mm W x 0.5mm H. Operating temperature range from -55°C to 155°C, with 2 terminations and RoHS compliance. Packaged in tape and reel for 1000 units.
Package6432
Resistance7mR
Quick Jump:
Technical Specifications
Susumu KRL6432E-M-R007-F-T1 technical specifications.
General
Case Code (Imperial)
2512
Case Code (Metric)
6432
Package/Case
6432
Features
Automotive AEC-Q200
Height
0.5mm
Length
6.3mm
Max Operating Temperature
155°C
Min Operating Temperature
-55°C
Max Power Dissipation
3W
Number of Terminations
2
Package Quantity
1000
Packaging
Tape and Reel
Ratings
AEC-Q200
Resistance
7mR
RoHS Compliant
Yes
Series
KRL
Technology
METAL FOIL
Termination
SMD/SMT
Tolerance
1%
Weight
0.001429oz
Width
3.1mm
Compliance
RoHS
Compliant
Datasheet
Susumu KRL6432E-M-R007-F-T1 Datasheet
Download the complete datasheet for Susumu KRL6432E-M-R007-F-T1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

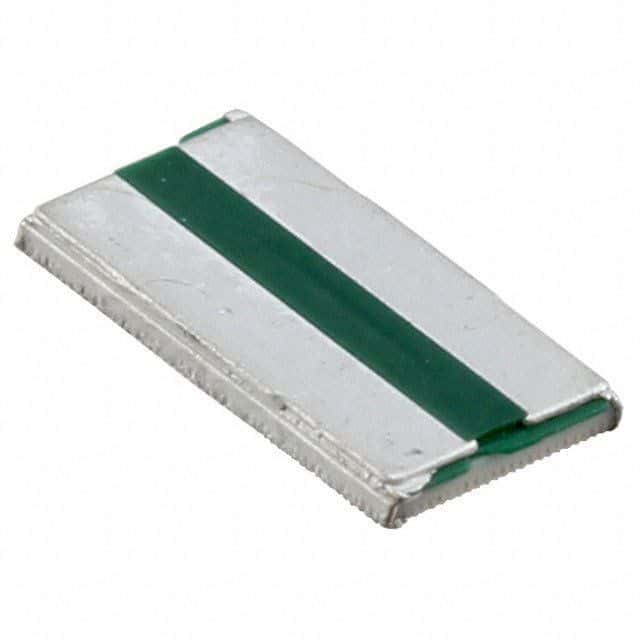

Product Images
