Technical Specifications
Susumu PCMB063T-2R2MS technical specifications.
General
| Package/Case | Nonstandard |
| DC Resistance (DCR) | 20mR |
| Height | 2.8mm |
| Inductance | 2.2uH |
| Inductance Tolerance | 20% |
| Length | 6.95mm |
| Max DC Current | 8A |
| Mount | Surface Mount |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Saturation Current | 14A |
| Series | PCMB |
| Shielding | Unshielded |
| Termination | SMD/SMT |
| Test Frequency | 100kHz |
| Tolerance | 20% |
| Width | 6.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Susumu PCMB063T-2R2MS Datasheet
Download the complete datasheet for Susumu PCMB063T-2R2MS to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

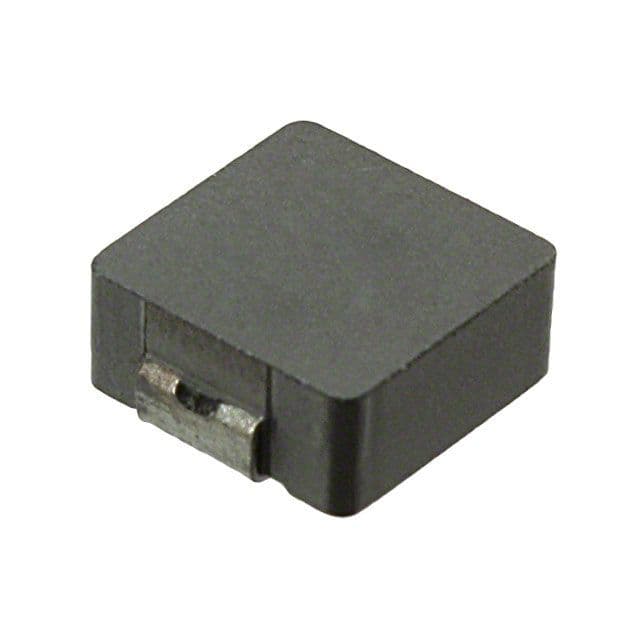

Product Images
