Primary lithium battery with 3.6V output voltage and 19Ah capacity. Features a cylindrical D-size form factor with a 32.9mm diameter and 61.5mm length, equipped with a holder mount and solder termination. Operates across a wide temperature range from -55°C to 85°C, offering a non-rechargeable solution.
Voltage3.6V
Storage19ah
Voltage Rating3.6V
MountingHolder
Quick Jump:
Technical Specifications
Tadiran Batteries TL-5930/T technical specifications.
General
Battery Chemistry
LITHIUM
Battery Type
PRIMARY
Capacity
19ah
Chemistry/Technology
Lithium
Depth
32.9mm
Diameter
32.9mm
Height
61.5mm
Lead Free
Lead Free
Length
61.5mm
Max Operating Temperature
85°C
Min Operating Temperature
-55°C
Mount
Holder
Number of Cells
1
Output Voltage
3.6V
Packaging
Tray
Radiation Hardening
No
Rechargeability
Non-Rechargeable
Series
iXtra
Termination
Solder
Voltage
3.6V
Voltage Rating
3.6V
DC Rated Voltage
3.6V
Weight
93g
Compliance
RoHS
Compliant
Datasheet
Tadiran Batteries TL-5930/T Datasheet
Download the complete datasheet for Tadiran Batteries TL-5930/T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

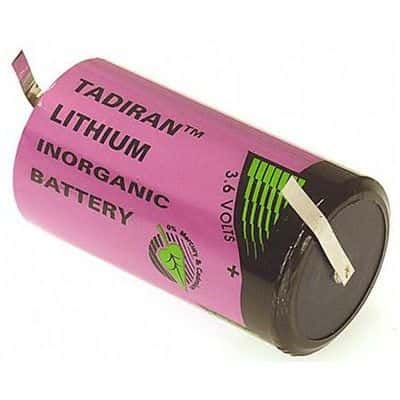

Product Images
