Taiwan Semiconductor
GBPC1510
15A, 1000V, SILICON, BRIDGE RECTIFIER DIODE, GREEN, PLASTIC, GBPC, 4 PIN
Capacitance180pF
Current Rating15A
MountingScrew
Quick Jump:
Technical Specifications
Taiwan Semiconductor GBPC1510 technical specifications.
General
| Capacitance | 180pF |
| Current Rating | 15A |
| Forward Current | 15A |
| Height | 11.23mm |
| Lead Free | Lead Free |
| Length | 29mm |
| Max Forward Surge Current (Ifsm) | 300A |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -50°C |
| Max Repetitive Reverse Voltage (Vrrm) | 1kV |
| Max Reverse Current | 5uA |
| Max Reverse Leakage Current | 5uA |
| Max Surge Current | 300A |
| Mount | Screw |
| Output Current | 15A |
| Package Quantity | 100 |
| Packaging | Bulk |
| Reach SVHC Compliant | Yes |
| DC Rated Voltage | 1kV |
| Width | 29mm |
Compliance
| RoHS | Compliant |
Datasheet
Taiwan Semiconductor GBPC1510 Datasheet
Download the complete datasheet for Taiwan Semiconductor GBPC1510 to view detailed technical specifications.
No datasheet is available for this part.

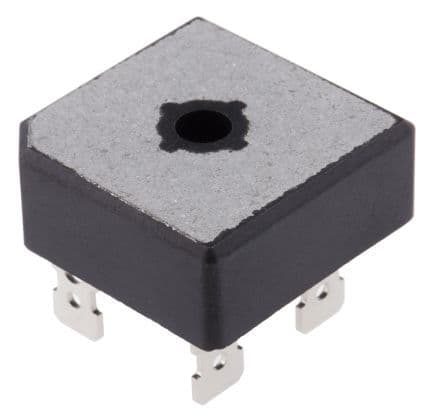

Product Images
