Technical Specifications

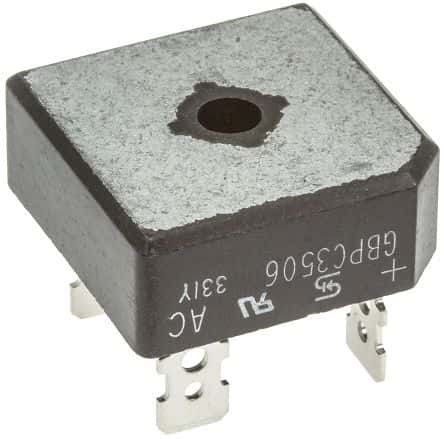

Taiwan Semiconductor GBPC3506 technical specifications.
General
Capacitance
180pF
Current Rating
35A
Forward Current
35A
Height
11.23mm
Lead Free
Lead Free
Length
29mm
Max Forward Surge Current (Ifsm)
400A
Max Operating Temperature
150°C
Min Operating Temperature
-50°C
Max Repetitive Reverse Voltage (Vrrm)
600V
Max Reverse Current
5uA
Max Reverse Leakage Current
5uA
Max Surge Current
400A
Mount
Screw
Output Current
35A
Package Quantity
100
Packaging
Bulk
Reach SVHC Compliant
Yes
DC Rated Voltage
600V
Width
29mm
Compliance
RoHS
Compliant
Datasheet
Taiwan Semiconductor GBPC3506 Datasheet
Download the complete datasheet for Taiwan Semiconductor GBPC3506 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
