35A bridge rectifier for general purpose applications, featuring a 1kV DC rated voltage and 1kV maximum repetitive reverse voltage. This through-hole component offers a 35A forward current and 35A output current, with a maximum forward surge current of 400A. Operating across a wide temperature range from -50°C to 150°C, it includes a low 5uA maximum reverse leakage current and 180pF capacitance. The component is lead-free, REACH SVHC compliant, and comes in bulk packaging.
Capacitance180pF
Current Rating35A
MountingThrough Hole
Quick Jump:
Technical Specifications
Taiwan Semiconductor GBPC3510W technical specifications.
General
Capacitance
180pF
Current Rating
35A
Forward Current
35A
Height
11.23mm
Lead Free
Lead Free
Length
29mm
Max Forward Surge Current (Ifsm)
400A
Max Operating Temperature
150°C
Min Operating Temperature
-50°C
Max Repetitive Reverse Voltage (Vrrm)
1kV
Max Reverse Current
5uA
Max Reverse Leakage Current
5uA
Max Surge Current
400A
Mount
Through Hole
Output Current
35A
Package Quantity
100
Packaging
Bulk
Reach SVHC Compliant
Yes
DC Rated Voltage
1kV
Width
29mm
Compliance
RoHS
Compliant
Datasheet
Taiwan Semiconductor GBPC3510W Datasheet
Download the complete datasheet for Taiwan Semiconductor GBPC3510W to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

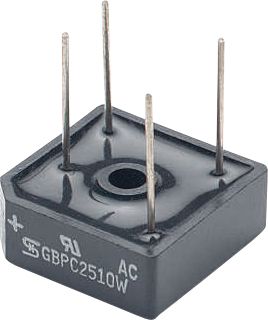

Product Images
