Taiwan Semiconductor
MBR2045CT
Schottky diode Housing type: TO-220AB Peak conducting-state current: 150 A
PackageTO-220AB
Current Rating20A
MountingThrough Hole
Power400mW
Quick Jump:
Technical Specifications
Taiwan Semiconductor MBR2045CT technical specifications.
General
| Package/Case | TO-220AB |
| Current Rating | 20A |
| Forward Current | 20A |
| Height | 8.24mm |
| Lead Free | Lead Free |
| Length | 10.5mm |
| Max Forward Surge Current (Ifsm) | 150A |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Repetitive Reverse Voltage (Vrrm) | 45V |
| Max Reverse Current | 100uA |
| Max Reverse Leakage Current | 100uA |
| Max Surge Current | 150A |
| Mount | Through Hole |
| Package Quantity | 2000 |
| Packaging | Rail/Tube |
| Power Dissipation | 400mW |
| Reverse Recovery Time | 25ns |
| RoHS Compliant | Yes |
| DC Rated Voltage | 45V |
| Width | 4.7mm |
Compliance
| RoHS | Compliant |
Datasheet
Taiwan Semiconductor MBR2045CT Datasheet
Download the complete datasheet for Taiwan Semiconductor MBR2045CT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

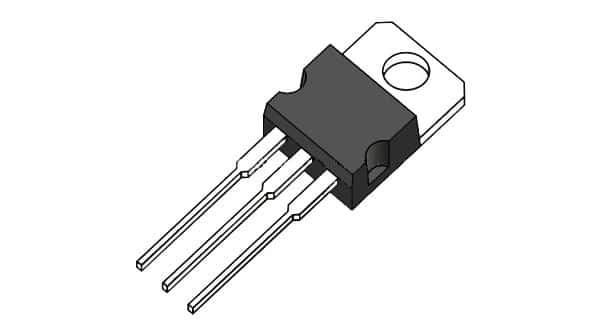

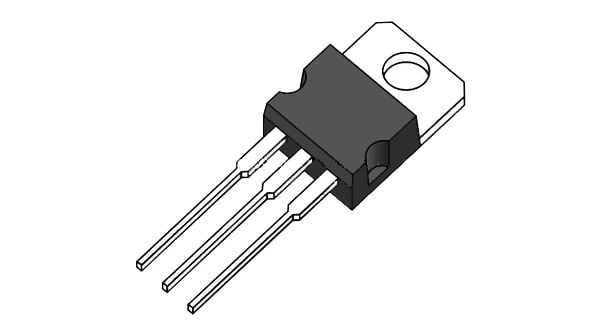

Product Images
