Unidirectional TVS Diode, 12V DC Rated Voltage, 600W Peak Pulse Power, and 100A Max Surge Current. Features a 19.9V Clamping Voltage and 14.7V Max Breakdown Voltage, with a Min Breakdown Voltage of 13.3V. This surface mount component, housed in a DO-214AA package, operates from -65°C to 150°C.
PackageDO-214AA
MountingSurface Mount
PolarityUnidirectional
Power5W
Quick Jump:
Technical Specifications
Taiwan Semiconductor SMBJ12A technical specifications.
General
| Package/Case | DO-214AA |
| Clamping Voltage | 19.9V |
| Diode Type | ZENER |
| Height | 2.44mm |
| Lead Free | Lead Free |
| Length | 5.59mm |
| Max Breakdown Voltage | 14.7V |
| Min Breakdown Voltage | 13.3V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 600W |
| Max Surge Current | 100A |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Unidirectional Channels | 1 |
| Operating Supply Voltage | 12V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 30.2A |
| Peak Pulse Power | 600W |
| Polarity | Unidirectional |
| Power Dissipation | 5W |
| Power Line Protection | No |
| Reach SVHC Compliant | No |
| Reverse Standoff Voltage | 12V |
| RoHS Compliant | Yes |
| Series | SMBJ |
| DC Rated Voltage | 12V |
| Width | 3.94mm |
Compliance
| RoHS | Compliant |
Datasheet
Taiwan Semiconductor SMBJ12A Datasheet
Download the complete datasheet for Taiwan Semiconductor SMBJ12A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

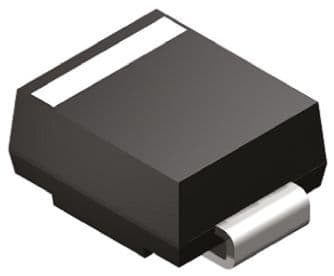

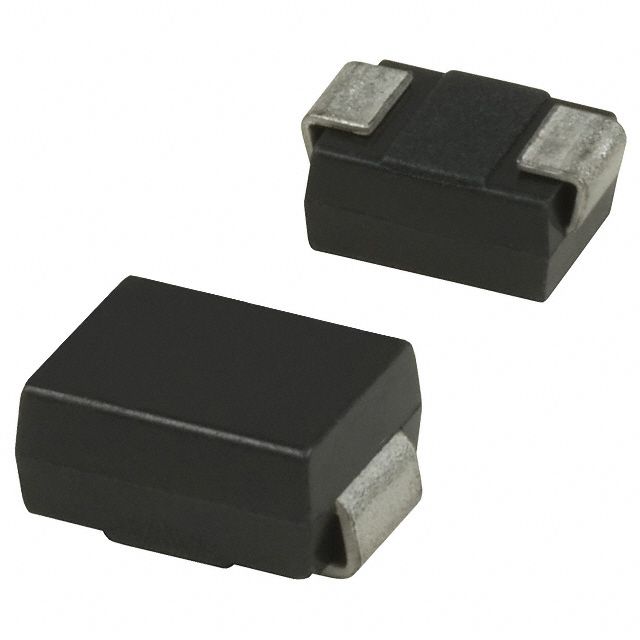

Product Images
