Unidirectional Transient Voltage Suppressor (TVS) diode, 600W peak pulse power, 16V reverse standoff voltage, and 26V clamping voltage. Features a minimum breakdown voltage of 17.8V and a maximum surge current of 100A. This silicon component is housed in a DO-214AA surface mount package with dimensions of 4.7mm length, 3.94mm width, and 2.44mm height. Operates across a temperature range of -65°C to 150°C and is lead-free and RoHS compliant.
PackageDO-214AA
MountingSurface Mount
PolarityUnidirectional
Quick Jump:
Technical Specifications
Taiwan Semiconductor SMBJ16A technical specifications.
General
| Package/Case | DO-214AA |
| Clamping Voltage | 26V |
| Diode Type | ZENER |
| Height | 2.44mm |
| Lead Free | Lead Free |
| Length | 4.7mm |
| Min Breakdown Voltage | 17.8V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Surge Current | 100A |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Unidirectional Channels | 1 |
| Operating Supply Voltage | 16V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 23.1A |
| Peak Pulse Power | 600W |
| Polarity | Unidirectional |
| Power Line Protection | No |
| Reach SVHC Compliant | Yes |
| Reverse Standoff Voltage | 16V |
| RoHS Compliant | Yes |
| Series | SMBJ |
| DC Rated Voltage | 16V |
| Width | 3.94mm |
Compliance
| RoHS | Compliant |
Datasheet
Taiwan Semiconductor SMBJ16A Datasheet
Download the complete datasheet for Taiwan Semiconductor SMBJ16A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

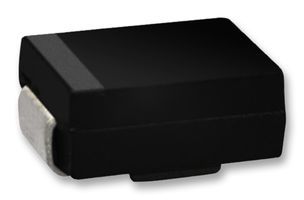

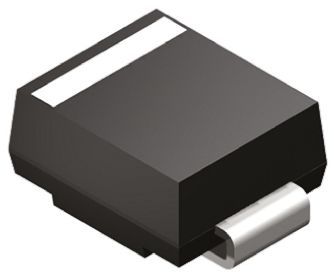

Product Images
