The SMBJ43CA is a unidirectional transient voltage suppressor (TVS) with a clamping voltage of 69.4V and a peak pulse power of 600W. It operates over a temperature range of -65°C to 150°C and has a maximum surge current of 100A. The device is lead-free and RoHS compliant, packaged in a DO-214AA case and available in tape and reel quantities of 3000. It is suitable for use in power distribution applications.
PackageDO-214AA
PolarityBidirectional
Power5W
Quick Jump:
Technical Specifications
Taiwan Semiconductor SMBJ43CA technical specifications.
General
| Package/Case | DO-214AA |
| Clamping Voltage | 69.4V |
| Height | 2.44mm |
| Lead Free | Lead Free |
| Length | 5.59mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Surge Current | 100A |
| Number of Channels | 1 |
| Operating Supply Voltage | 43V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Peak Pulse Power | 600W |
| Polarity | Bidirectional |
| Power Dissipation | 5W |
| Reach SVHC Compliant | Yes |
| RoHS Compliant | Yes |
| DC Rated Voltage | 43V |
| Width | 3.94mm |
Compliance
| RoHS | Compliant |
Datasheet
Taiwan Semiconductor SMBJ43CA Datasheet
Download the complete datasheet for Taiwan Semiconductor SMBJ43CA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

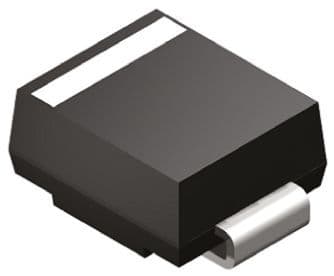

Product Images
