The SMCJ14A is a unidirectional surge suppressor with a clamping voltage of 23.2V and a peak pulse power rating of 1.5kW. It operates over a temperature range of -55°C to 150°C and is packaged in a lead-free DO-214AB case. The device is RoHS compliant and meets Reach SVHC requirements.
PackageDO-214AB
PolarityUnidirectional
Quick Jump:
Technical Specifications
Taiwan Semiconductor SMCJ14A technical specifications.
General
| Package/Case | DO-214AB |
| Clamping Voltage | 23.2V |
| Height | 2.62mm |
| Lead Free | Lead Free |
| Length | 7.11mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Surge Current | 200A |
| Number of Channels | 1 |
| Operating Supply Voltage | 14V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Peak Pulse Power | 1.5kW |
| Polarity | Unidirectional |
| Reach SVHC Compliant | Yes |
| RoHS Compliant | Yes |
| DC Rated Voltage | 14V |
| Width | 6.22mm |
Compliance
| RoHS | Compliant |
Datasheet
Taiwan Semiconductor SMCJ14A Datasheet
Download the complete datasheet for Taiwan Semiconductor SMCJ14A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

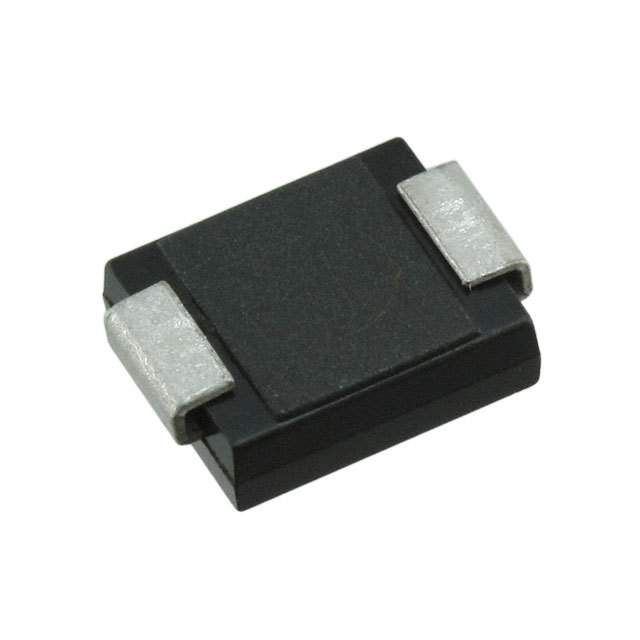

Product Images
