Bidirectional Transient Voltage Suppressor (TVS) diode, 1500W peak pulse power, designed for surface mount applications in a DO-214AB package. Features a 36V reverse standoff voltage, 58.1V clamping voltage, and a minimum breakdown voltage of 40V. Operates across a wide temperature range from -55°C to 150°C, with a low maximum reverse leakage current of 1uA. This RoHS compliant component offers robust protection with a maximum surge current of 200A and a peak pulse current of 25.8A.
PackageDO-214AB
MountingSurface Mount
PolarityBidirectional
Quick Jump:
Technical Specifications
Taiwan Semiconductor SMCJ36CA technical specifications.
General
| Package/Case | DO-214AB |
| Clamping Voltage | 58.1V |
| Diode Type | ZENER |
| Direction | Bidirectional |
| Height | 2.62mm |
| Length | 7.11mm |
| Min Breakdown Voltage | 40V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Reverse Leakage Current | 1uA |
| Max Surge Current | 200A |
| Mount | Surface Mount |
| Number of Bidirectional Channels | 1 |
| Number of Channels | 1 |
| Operating Supply Voltage | 36V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 25.8A |
| Peak Pulse Power | 1.5kW |
| Polarity | Bidirectional |
| Power Line Protection | No |
| Reverse Standoff Voltage | 36V |
| RoHS Compliant | Yes |
| Width | 6.22mm |
Compliance
| RoHS | Compliant |
Datasheet
Taiwan Semiconductor SMCJ36CA Datasheet
Download the complete datasheet for Taiwan Semiconductor SMCJ36CA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

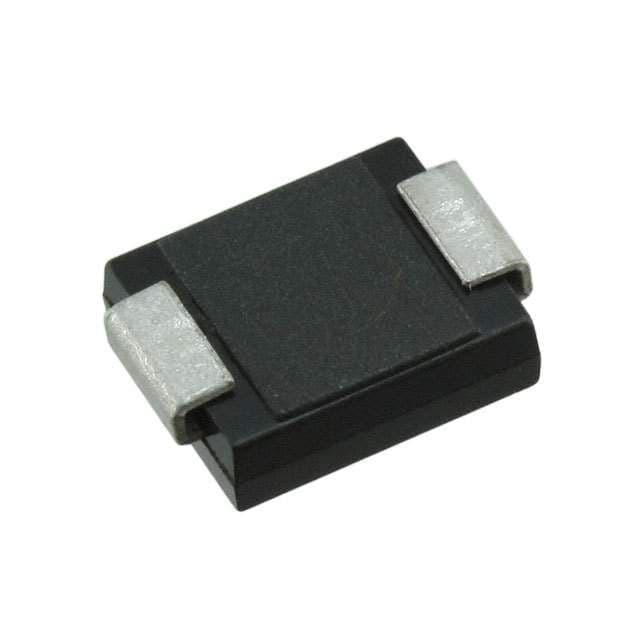

Product Images
