Surface mount fixed inductor with 1.8nH inductance and 6GHz self-resonant frequency. Features 710mA DC current rating, 70mΩ DC resistance, and an 8 Q-factor at 100MHz. Encased in a compact 0402 (1005 metric) package, this component operates from -55°C to 85°C and is RoHS and Halogen Free compliant. Designed for tape and reel packaging.
Package0402
MountingSurface Mount
Inductance1.8nH
Quick Jump:
Technical Specifications
Taiyo Yuden AQ1051N8S-T technical specifications.
General
Case Code (Imperial)
0402
Case Code (Metric)
1005
Package/Case
0402
DC Current
710mA
DC Resistance (DCR)
70mR
Depth
0.7mm
Halogen Free
Halogen Free
Height
0.5mm
Inductance
1.8nH
Length
1mm
Max DC Current
710mA
Max Operating Temperature
85°C
Military Standard
Not
Min Operating Temperature
-55°C
Mount
Surface Mount
Packaging
Tape and Reel
Q Factor
8
Radiation Hardening
No
RoHS Compliant
Yes
Self Resonant Frequency
6GHz
Series
AQ
Shielding
Unshielded
Termination
SMD/SMT
Test Frequency
100MHz
Width
0.5mm
Compliance
RoHS
Compliant
Datasheet
Taiyo Yuden AQ1051N8S-T Datasheet
Download the complete datasheet for Taiyo Yuden AQ1051N8S-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

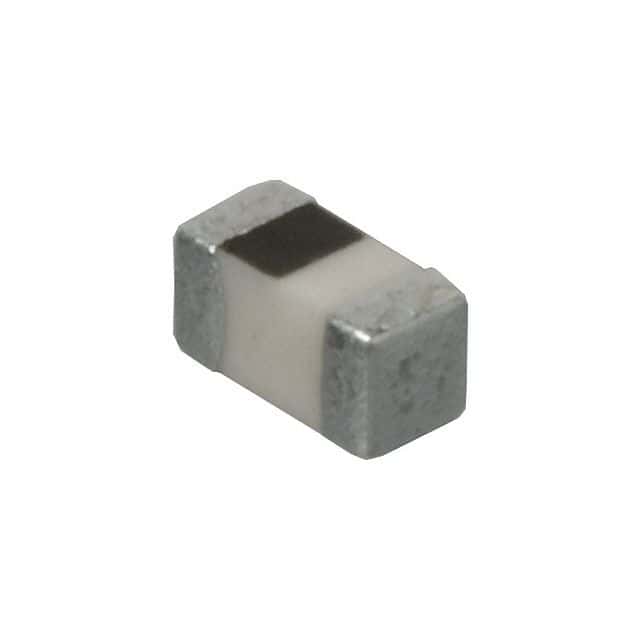

Product Images
