Ferrite chip for data line EMI/RFI filtering. Features 22 Ohm impedance at 100MHz, a 1.2A maximum current rating, and operates across a -55°C to 125°C temperature range. This surface mount component utilizes a ferrite core and is housed in an EIA STD 0805 package (2012 metric). It is RoHS and Halogen Free compliant.
Frequency100MHz
Package0805
MountingSurface Mount
Quick Jump:
Technical Specifications
Taiyo Yuden BK2125HS220-T technical specifications.
General
| Case Code (Imperial) | 0805 |
| Case Code (Metric) | 2012 |
| Package/Case | 0805 |
| Core Material | Ferrite |
| Depth | 1.45mm |
| Frequency | 100MHz |
| Halogen Free | Halogen Free |
| Height | 0.041inch |
| Impedance | 22R |
| Lead Free | Lead Free |
| Length | 0.079inch |
| Max Current Rating | 1.2A |
| Max DC Current | 1.2A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Lines | 1 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | BK |
| Shielding | Unshielded |
| Termination | SMD/SMT |
| Test Frequency | 100MHz |
| Tolerance | 25% |
| Width | 0.049inch |
Compliance
| RoHS | Compliant |
Datasheet
Taiyo Yuden BK2125HS220-T Datasheet
Download the complete datasheet for Taiyo Yuden BK2125HS220-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

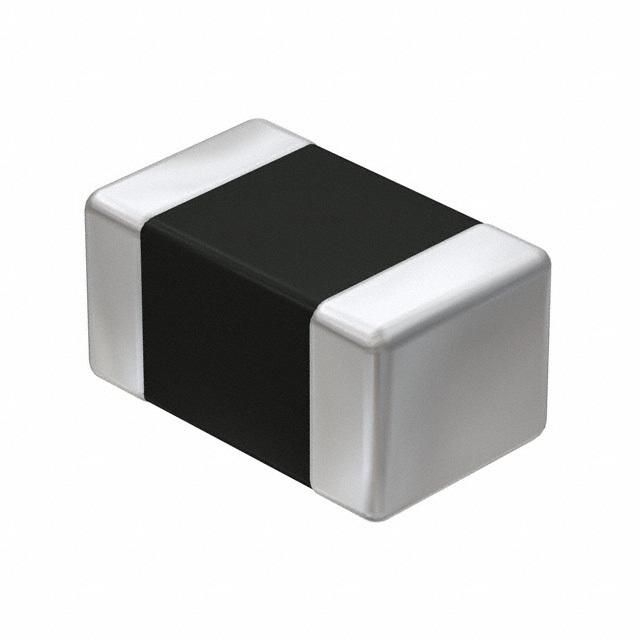

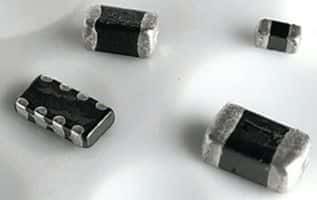

Product Images
