Surface mount fixed inductor with 22µH inductance and 20% tolerance. Features a ferrite core, 240mA current rating, and 2.34Ω DCR. Operates within a -40°C to 105°C temperature range. Packaged in an 0806 (2016 metric) case, supplied on tape and reel. Halogen-free and RoHS compliant.
Package0806
Current Rating240mA
MountingSurface Mount
Inductance22uH
Quick Jump:
Technical Specifications
Taiyo Yuden CBC2016T220M technical specifications.
General
| Case Code (Imperial) | 0806 |
| Case Code (Metric) | 2016 |
| Package/Case | 0806 |
| Core Material | Ferrite |
| Current Rating | 240mA |
| DC Current | 240mA |
| DC Resistance (DCR) | 2.34R |
| Depth | 1.8mm |
| Halogen Free | Halogen Free |
| Height | 1.6mm |
| Height - Seated (Max) | 0.071inch |
| Inductance | 22uH |
| Lead Free | Lead Free |
| Length | 0.079inch |
| Max DC Current | 250mA |
| Max Operating Temperature | 105°C |
| Military Standard | Not |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Saturation Current | 250mA |
| Self Resonant Frequency | 16MHz |
| Series | CB |
| Shielding | Unshielded |
| Termination | SMD/SMT |
| Test Frequency | 2.52MHz |
| Tolerance | 20% |
| Width | 0.063inch |
Compliance
| RoHS | Compliant |
Datasheet
Taiyo Yuden CBC2016T220M Datasheet
Download the complete datasheet for Taiyo Yuden CBC2016T220M to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

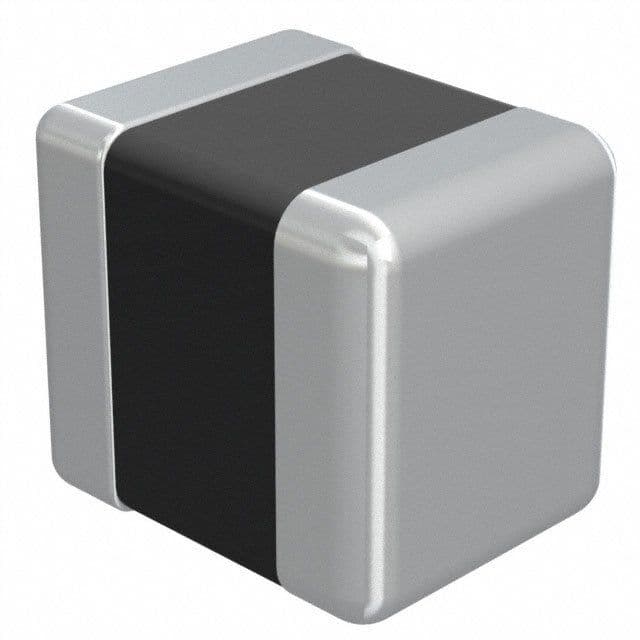

Product Images
