Surface mount power inductor featuring 47µH inductance with a 20% tolerance, designed for high-frequency applications up to 100kHz. This ferrite core component offers a maximum DC current rating of 480mA and a low DC resistance of 871mΩ. The 1210 case size (3225 metric) ensures compact integration, with dimensions of 2.7mm depth, 2.5mm height, and 3.2mm length. It operates within a temperature range of -40°C to 105°C and is RoHS and Halogen Free compliant.
Package1210
Resistance0.871R
Current Rating480mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Taiyo Yuden CBC3225T470MR technical specifications.
General
| Case Code (Imperial) | 1210 |
| Case Code (Metric) | 3225 |
| Package/Case | 1210 |
| Core Material | Ferrite |
| Current Rating | 480mA |
| DC Current | 480mA |
| DC Resistance (DCR) | 871mR |
| Depth | 2.7mm |
| Halogen Free | Halogen Free |
| Height | 2.5mm |
| Height - Seated (Max) | 0.106inch |
| Inductance | 47uH |
| Inductance Tolerance | 20% |
| Inductor Type | POWER |
| Lead Free | Lead Free |
| Length | 0.126inch |
| Max DC Current | 480mA |
| Max Operating Temperature | 105°C |
| Military Standard | Not |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Resistance | 0.871R |
| RoHS Compliant | Yes |
| Saturation Current | 390mA |
| Self Resonant Frequency | 10MHz |
| Series | CB |
| Shielding | Unshielded |
| Termination | SMD/SMT |
| Test Frequency | 100kHz |
| Tolerance | 20% |
| Width | 0.098inch |
Compliance
| RoHS | Compliant |
Datasheet
Taiyo Yuden CBC3225T470MR Datasheet
Download the complete datasheet for Taiyo Yuden CBC3225T470MR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

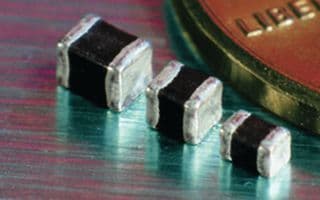

Product Images
