Surface mount general purpose fixed inductor with 4.7uH inductance and 20% tolerance. Features a ferrite core, 1.1A DC current rating, and 150mR DC resistance. This component is designed for 1008 (2520 metric) case size, operating between -40°C and 85°C, and is RoHS and Halogen Free compliant.
Package1008
MountingSurface Mount
Inductance4.7uH
Quick Jump:
Technical Specifications
Taiyo Yuden CKP25204R7M-T technical specifications.
General
| Case Code (Imperial) | 1008 |
| Case Code (Metric) | 2520 |
| Package/Case | 1008 |
| Core Material | Ferrite |
| DC Current | 1.1A |
| DC Resistance (DCR) | 150mR |
| Depth | 2.2mm |
| Halogen Free | Halogen Free |
| Height | 1mm |
| Inductance | 4.7uH |
| Inductance Tolerance | 20% |
| Lead Free | Lead Free |
| Length | 2.5mm |
| Max DC Current | 1.1A |
| Max Operating Temperature | 85°C |
| Military Standard | Not |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Saturation Current | 150mA |
| Self Resonant Frequency | 1MHz |
| Series | CK, P Type |
| Shielding | Unshielded |
| Termination | SMD/SMT |
| Test Frequency | 1MHz |
| Tolerance | 20% |
| Width | 2mm |
Compliance
| RoHS | Compliant |
Datasheet
Taiyo Yuden CKP25204R7M-T Datasheet
Download the complete datasheet for Taiyo Yuden CKP25204R7M-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

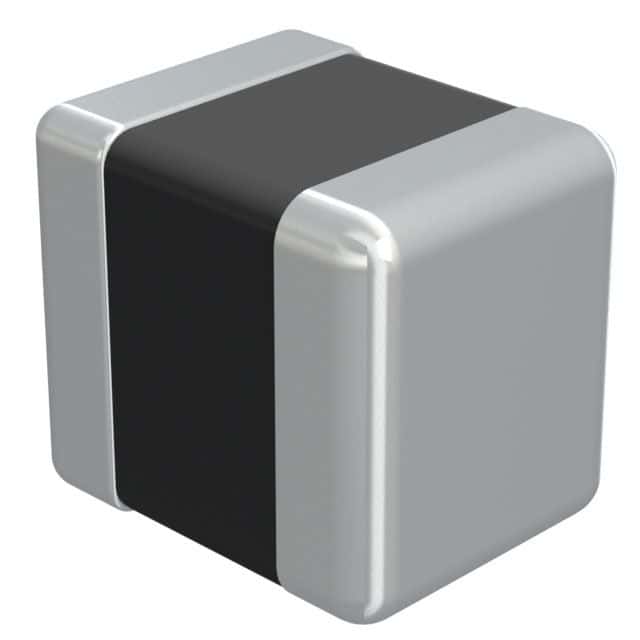

Product Images
