Surface mount general purpose inductor with 15nH inductance and 5% tolerance. Features a ferrite and ceramic core, operating temperature range of -55°C to 125°C, and a current rating of 320mA. This unshielded chip inductor is housed in a 0402 (1005) case code, with a DC resistance of 460mR and a self-resonant frequency of 2.3GHz. Packaged on tape and reel, it is RoHS compliant.
Package0402
Current Rating320mA
MountingSurface Mount
Inductance15nH
Quick Jump:
Technical Specifications
Taiyo Yuden HK100515NJ-T technical specifications.
General
Body Material
Ceramic
Case Code (Imperial)
0402
Case Code (Metric)
1005
Package/Case
0402
Core Material
Ferrite, Ceramic
Current Rating
320mA
DC Current
320mA
DC Resistance (DCR)
460mR
Depth
0.55mm
Halogen Free
Halogen Free
Height
0.5mm
Height - Seated (Max)
0.022inch
Inductance
15nH
Inductance Tolerance
5%
Lead Free
Exempt
Length
0.039inch
Max DC Current
300mA
Max Operating Temperature
125°C
Military Standard
Not
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
1
Packaging
Tape and Reel
Q Factor
8
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RMS Current (Irms)
300mA
RoHS Compliant
Yes
Self Resonant Frequency
2.3GHz
Series
HK
Series Resistance
460mR
Shielding
Unshielded
Termination
SMD/SMT
Test Frequency
100MHz
Tolerance
5%
Width
0.02inch
Compliance
RoHS
Compliant
Datasheet
Taiyo Yuden HK100515NJ-T Datasheet
Download the complete datasheet for Taiyo Yuden HK100515NJ-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

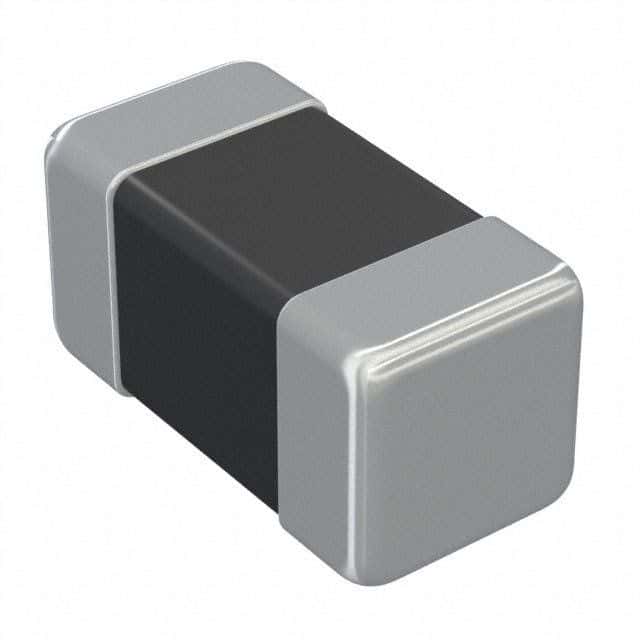

Product Images
