General purpose ceramic chip capacitor, 1µF capacitance, 6.3V voltage rating, and ±10% tolerance. Features X5R dielectric in a compact 0402 (1005) surface mount package. Operates across a wide temperature range of -55°C to +85°C. Halogen and lead-free, RoHS compliant. Supplied on a 7" reel with 10,000 units.
Package0402
Capacitance1uF
Voltage Rating6.3V
MountingSurface Mount
Quick Jump:
Technical Specifications
Taiyo Yuden JMK105BJ105KV-F technical specifications.
General
| Capacitance | 1uF |
| Case Code (Imperial) | 0402 |
| Case Code (Metric) | 1005 |
| Package/Case | 0402 |
| Construction | Flat |
| Depth | 0.5mm |
| Dielectric | X5R |
| Halogen Free | Halogen Free |
| Height | 0.5mm |
| Lead Free | Lead Free |
| Length | 1mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 10000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | M |
| Termination | SMD/SMT |
| Tolerance | 10% |
| Voltage Rating | 6.3V |
| DC Rated Voltage | 6.3V |
| Width | 0.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Taiyo Yuden JMK105BJ105KV-F Datasheet
Download the complete datasheet for Taiyo Yuden JMK105BJ105KV-F to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

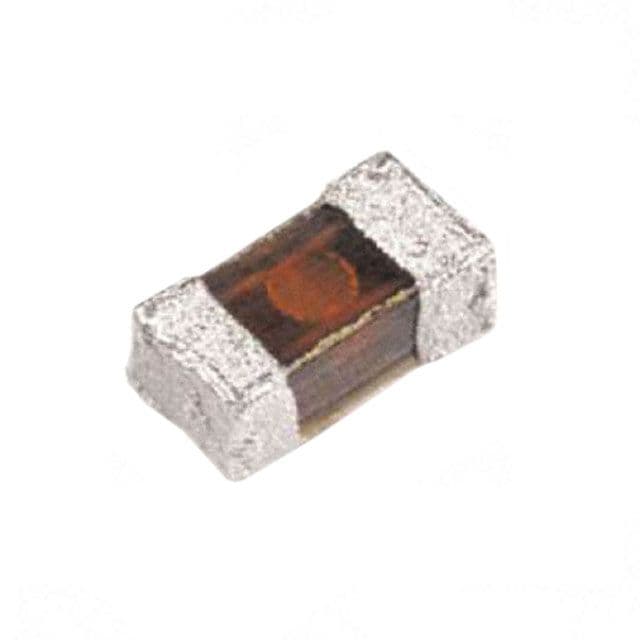

Product Images
