Surface mount ceramic capacitor with 22uF capacitance and 6.3V voltage rating. Features X5R dielectric, 10% tolerance, and a 1210 case code. Operating temperature range from -55°C to 85°C. RoHS compliant and lead-free.
Package1210
Capacitance22uF
Voltage Rating6.3V
MountingSurface Mount
Quick Jump:
Technical Specifications
Taiyo Yuden JMK325BJ226MM-T technical specifications.
General
| Capacitance | 22uF |
| Case Code (Imperial) | 1210 |
| Case Code (Metric) | 3225 |
| Package/Case | 1210 |
| Construction | Flat |
| Depth | 2.5mm |
| Dielectric | X5R |
| Height | 2.5mm |
| Lead Free | Lead Free |
| Length | 3.2mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Packaging | Cut Tape |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | M |
| Tolerance | 10% |
| Voltage Rating | 6.3V |
Compliance
| RoHS | Compliant |
Datasheet
Taiyo Yuden JMK325BJ226MM-T Datasheet
Download the complete datasheet for Taiyo Yuden JMK325BJ226MM-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

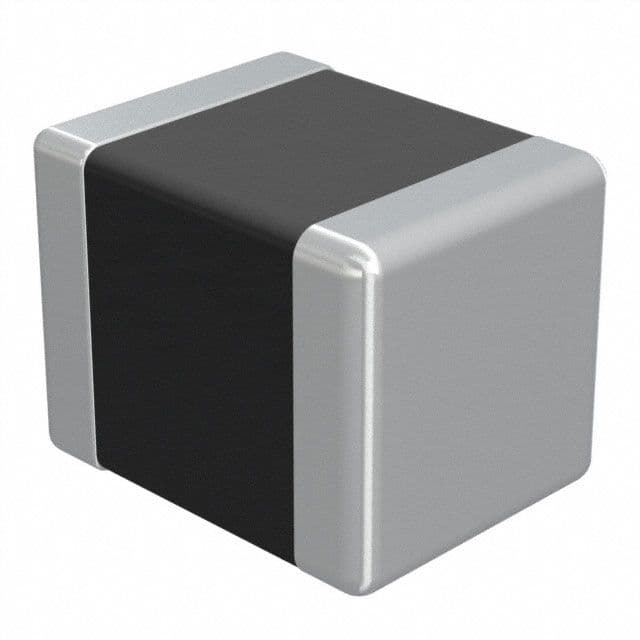

Product Images
