Surface mount ceramic capacitor array featuring two isolated capacitors, each with a 220nF capacitance and 10V DC rating. This component utilizes an X5R dielectric material, offering a 10% tolerance and operating across a temperature range of -55°C to 85°C. Housed in a 0504 (1.4mm x 1mm) case code, it provides a 0.64mm terminal pitch and is supplied on tape and reel. The construction is flat, halogen-free, lead-free, and RoHS compliant.
Package0504
Voltage10V
Capacitance220nF
Voltage Rating10V
Quick Jump:
Technical Specifications
Taiyo Yuden L2K110BJ224KB-T technical specifications.
General
Capacitance
220nF
Case Code (Imperial)
0504
Case Code (Metric)
1410
Package/Case
0504
Circuit Type
Isolated
Construction
Flat
Dielectric
X5R
Dielectric Material
Ceramic
Halogen Free
Halogen Free
Height
0.6mm
Lead Free
Lead Free
Length
1.4mm
Max Operating Temperature
85°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Number of Capacitors
2
Package Quantity
4000
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Terminal Pitch
0.64mm
Termination
SMD/SMT
Tolerance
10%
Voltage
10V
Voltage Rating
10V
DC Rated Voltage
10V
Width
1mm
Compliance
RoHS
Compliant
Datasheet
Taiyo Yuden L2K110BJ224KB-T Datasheet
Download the complete datasheet for Taiyo Yuden L2K110BJ224KB-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

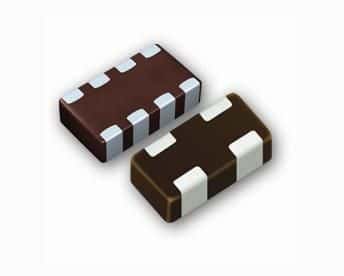

Product Images
