Surface mount fixed inductor featuring 10µH inductance with a 10% tolerance, designed for general-purpose applications. This wirewound ferrite core component offers a current rating of 120mA and a DC resistance of 500mΩ. Operating within a temperature range of -40°C to 105°C, it is housed in an 0805 (2012 metric) case code and is supplied on tape and reel. The inductor exhibits a self-resonant frequency of 32MHz at a test frequency of 2.52MHz.
Package0805
Current Rating120mA
MountingSurface Mount
Inductance10uH
Quick Jump:
Technical Specifications
Taiyo Yuden LB2012T100KR technical specifications.
General
| Case Code (Imperial) | 0805 |
| Case Code (Metric) | 2012 |
| Package/Case | 0805 |
| Core Material | Ferrite |
| Current Rating | 120mA |
| DC Current | 120mA |
| DC Resistance (DCR) | 500mR |
| Depth | 1.45mm |
| Halogen Free | Halogen Free |
| Height | 1.25mm |
| Height - Seated (Max) | 0.057inch |
| Inductance | 10uH |
| Inductance Tolerance | 10% |
| Lead Free | Lead Free |
| Length | 0.079inch |
| Max DC Current | 120mA |
| Max Operating Temperature | 105°C |
| Military Standard | Not |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RMS Current (Irms) | 120mA |
| RoHS Compliant | Yes |
| Self Resonant Frequency | 32MHz |
| Series | LB |
| Series Resistance | 650mR |
| Shielding | Unshielded |
| Termination | SMD/SMT |
| Test Frequency | 2.52MHz |
| Tolerance | 10% |
| Width | 0.049inch |
Compliance
| RoHS | Compliant |
Datasheet
Taiyo Yuden LB2012T100KR Datasheet
Download the complete datasheet for Taiyo Yuden LB2012T100KR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

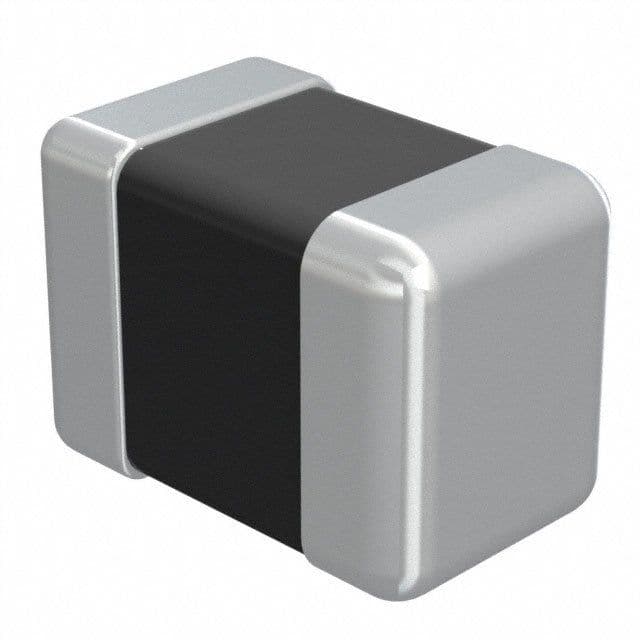

Product Images
