Surface mount general purpose inductor with 10µH inductance and 10% tolerance. Features a ferrite core, 0805 case size (2012 metric), and a maximum DC current rating of 200mA. DC resistance is 1.2Ω, with a self-resonant frequency of 40MHz. Operating temperature range is -40°C to 105°C. This RoHS compliant component is supplied on tape and reel.
Package0805
Current Rating200mA
MountingSurface Mount
Inductance10uH
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Taiyo Yuden LBC2012T100K datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Taiyo Yuden LBC2012T100K technical specifications.
General
| Case Code (Imperial) | 0805 |
| Case Code (Metric) | 2012 |
| Package/Case | 0805 |
| Core Material | Ferrite |
| Current Rating | 200mA |
| DC Current | 200mA |
| DC Resistance (DCR) | 1.2R |
| Depth | 1.45mm |
| Halogen Free | Halogen Free |
| Height | 1.25mm |
| Height - Seated (Max) | 0.057inch |
| Inductance | 10uH |
| Lead Free | Lead Free |
| Lead Pitch | 1mm |
| Length | 0.079inch |
| Max DC Current | 200mA |
| Max Operating Temperature | 105°C |
| Military Standard | Not |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Self Resonant Frequency | 40MHz |
| Series | LB |
| Shielding | Unshielded |
| Termination | SMD/SMT |
| Test Frequency | 2.52MHz |
| Tolerance | 10% |
| Weight | 0.000194oz |
| Width | 0.049inch |
Compliance
| RoHS | Compliant |
Datasheet
Taiyo Yuden LBC2012T100K Datasheet
Download the complete datasheet for Taiyo Yuden LBC2012T100K to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

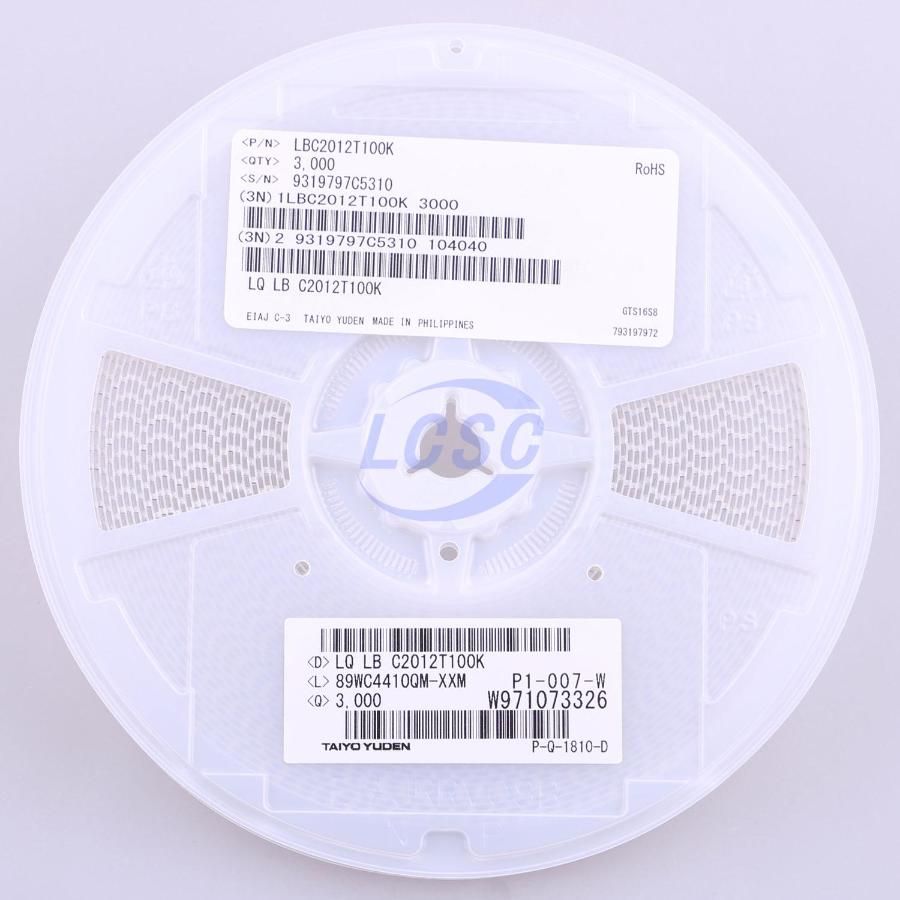

Product Images
