Surface mount fixed inductor featuring 12µH inductance with a 5% tolerance, designed for RF applications. This wirewound ferrite core component offers a Q factor of 25 at 2.52MHz and a maximum DC current rating of 200mA. It has a DC resistance (DCR) of 1.4 Ohms and a self-resonant frequency of 23MHz. The inductor is housed in an 0806 (2016 metric) case, measuring 2mm in length, 1.6mm in width, and 1.6mm in height, and is supplied on tape and reel. It operates within a temperature range of -40°C to 105°C and is RoHS compliant.
Package0806
MountingSurface Mount
Inductance12uH
Quick Jump:
Technical Specifications
Taiyo Yuden LBM2016T120J technical specifications.
General
| Case Code (Imperial) | 0806 |
| Case Code (Metric) | 2016 |
| Package/Case | 0806 |
| Core Material | Ferrite |
| DC Current | 200mA |
| DC Resistance (DCR) | 1.4R |
| Depth | 1.8mm |
| Halogen Free | Halogen Free |
| Height | 1.6mm |
| Inductance | 12uH |
| Inductance Tolerance | 5% |
| Lead Free | Lead Free |
| Length | 2mm |
| Max DC Current | 200mA |
| Max Operating Temperature | 105°C |
| Military Standard | Not |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Packaging | Tape and Reel |
| Q Factor | 25 |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Self Resonant Frequency | 23MHz |
| Series | LB, M Type |
| Shielding | Unshielded |
| Termination | SMD/SMT |
| Test Frequency | 2.52MHz |
| Tolerance | 5% |
| Width | 1.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Taiyo Yuden LBM2016T120J Datasheet
Download the complete datasheet for Taiyo Yuden LBM2016T120J to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

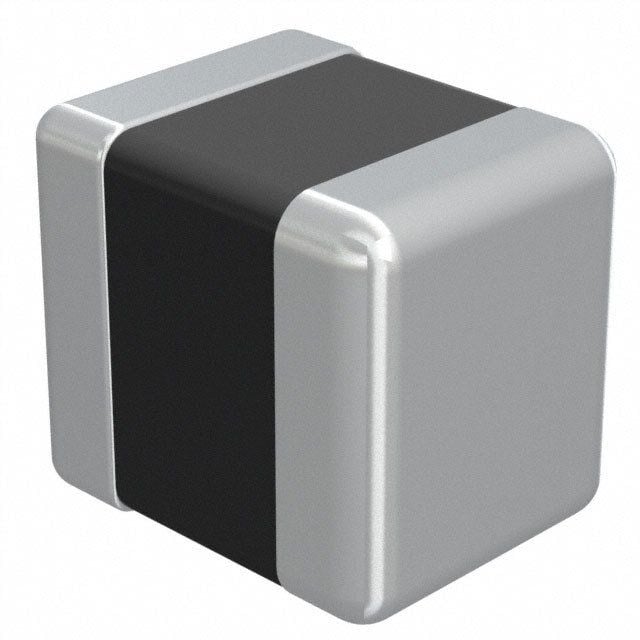

Product Images
