General purpose shielded inductor featuring 6µH inductance with a 20% tolerance. This surface mount component utilizes a ferrite core and offers a maximum DC current of 2.5A. With a DC resistance of 52mΩ, it operates within a temperature range of -25°C to 120°C. The compact 6.2mm x 6mm x 2.8mm package is RoHS compliant.
PackageNonstandard
MountingSurface Mount
Inductance6uH
Quick Jump:
Technical Specifications
Taiyo Yuden NR6028T6R0M technical specifications.
General
| Package/Case | Nonstandard |
| Core Material | Ferrite |
| DC Resistance (DCR) | 52mR |
| Depth | 6.2mm |
| Halogen Free | Halogen Free |
| Height | 2.8mm |
| Inductance | 6uH |
| Inductance Tolerance | 20% |
| Length | 6mm |
| Max DC Current | 2.5A |
| Max Operating Temperature | 120°C |
| Min Operating Temperature | -25°C |
| Mount | Surface Mount |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RMS Current (Irms) | 2.5A |
| RoHS Compliant | Yes |
| Saturation Current | 2.5A |
| Self Resonant Frequency | 30MHz |
| Series | NR |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 100kHz |
| Tolerance | 20% |
| Width | 6mm |
Compliance
| RoHS | Compliant |
Datasheet
Taiyo Yuden NR6028T6R0M Datasheet
Download the complete datasheet for Taiyo Yuden NR6028T6R0M to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

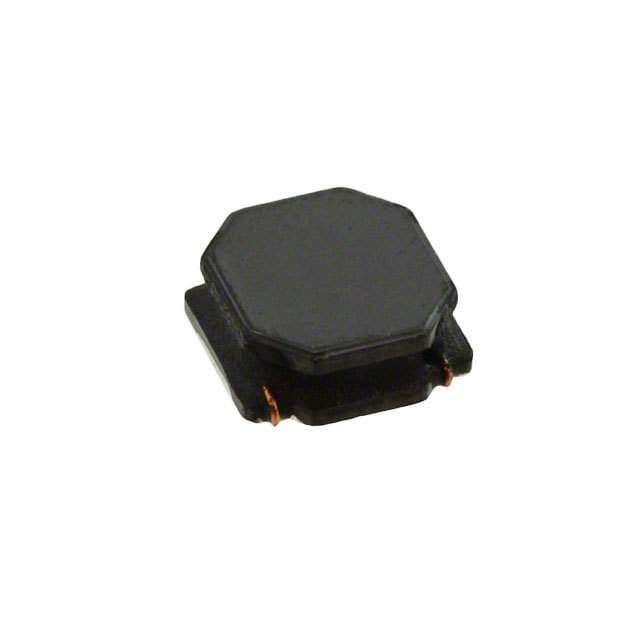

Product Images
