General purpose, shielded, ferrite-core chip inductor with 3.3µH inductance and 20% tolerance. Features a 1.21A current rating, 120mΩ DC resistance, and operates from -25°C to 120°C. Surface mountable with dimensions of 3mm (L) x 3.1mm (D) x 1.2mm (H). RoHS and Halogen Free compliant, supplied in tape and reel packaging.
PackageNonstandard
Current Rating1.21A
MountingSurface Mount
Inductance3.3uH
Quick Jump:
Technical Specifications
Taiyo Yuden NRH3012T3R3MN technical specifications.
General
| Package/Case | Nonstandard |
| Core Material | Ferrite |
| Current Rating | 1.21A |
| DC Resistance (DCR) | 120mR |
| Depth | 3.1mm |
| Halogen Free | Halogen Free |
| Height | 1.2mm |
| Height - Seated (Max) | 0.047inch |
| Inductance | 3.3uH |
| Inductance Tolerance | 20% |
| Lead Free | Lead Free |
| Length | 3mm |
| Max DC Current | 1.2A |
| Max Operating Temperature | 120°C |
| Min Operating Temperature | -25°C |
| Mount | Surface Mount |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RMS Current (Irms) | 1.21A |
| RoHS Compliant | Yes |
| Saturation Current | 1.2A |
| Self Resonant Frequency | 61MHz |
| Series | NRH |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 100kHz |
| Tolerance | 20% |
| Width | 0.118inch |
Compliance
| RoHS | Compliant |
Datasheet
Taiyo Yuden NRH3012T3R3MN Datasheet
Download the complete datasheet for Taiyo Yuden NRH3012T3R3MN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

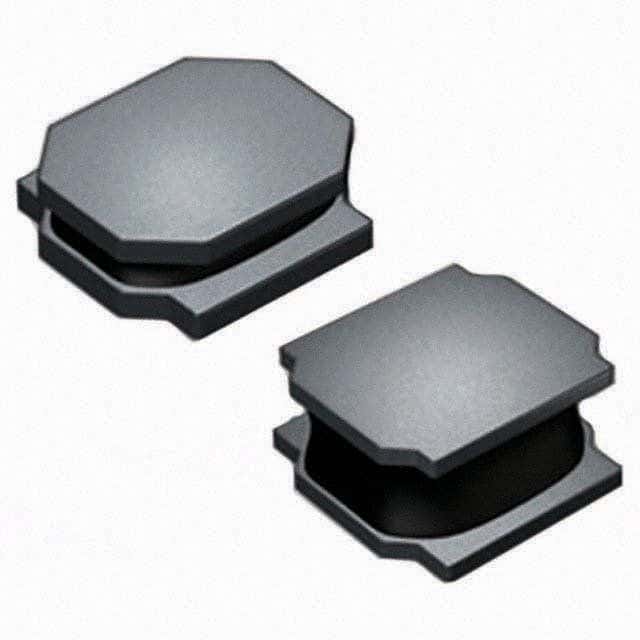

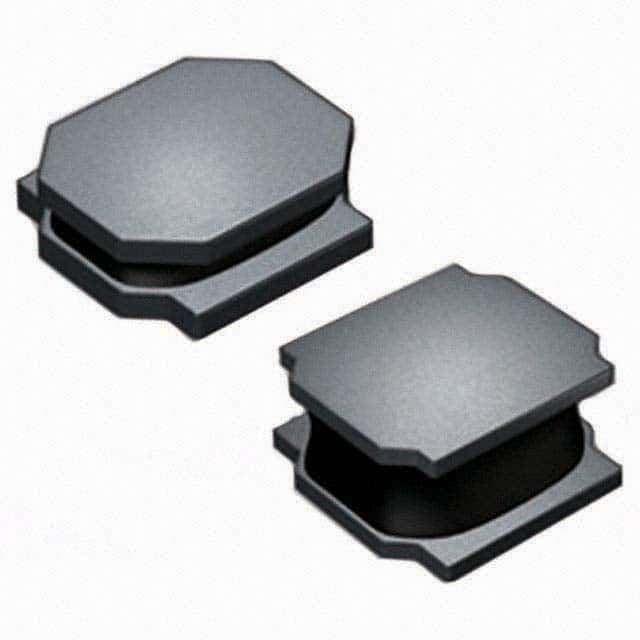

Product Images
