Cap Ceramic 10uF 25V X5R 10% Pad SMD 1206 85°C T/R
Package1206
Capacitance10uF
Voltage Rating25V
MountingSurface Mount
Quick Jump:
Technical Specifications
Taiyo Yuden TMK316ABJ106KD-T technical specifications.
General
| Capacitance | 10uF |
| Case Code (Imperial) | 1206 |
| Case Code (Metric) | 3216 |
| Package/Case | 1206 |
| Construction | Flat |
| Depth | 1.6mm |
| Dielectric | X5R |
| Height | 0.85mm |
| Length | 3.2mm |
| Material | Ceramic |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | M |
| Termination | SMD/SMT |
| Tolerance | 10% |
| Voltage Rating | 25V |
| DC Rated Voltage | 25V |
Compliance
| RoHS | Compliant |
Datasheet
Taiyo Yuden TMK316ABJ106KD-T Datasheet
Download the complete datasheet for Taiyo Yuden TMK316ABJ106KD-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

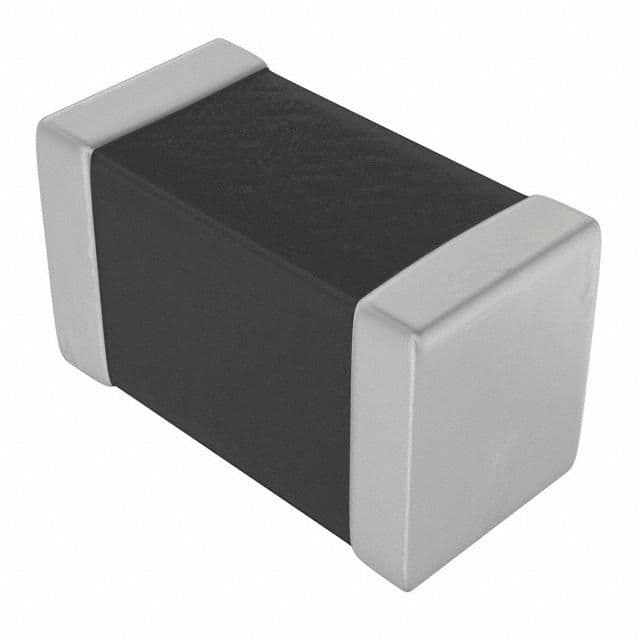

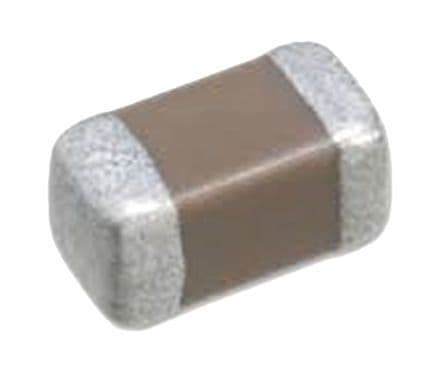

Product Images
