General purpose X7R ceramic chip capacitor, 4.7µF capacitance, 50V DC rated voltage, and ±10% tolerance. Features a 1206 (3216 metric) surface mount case with dimensions of 3.2mm length, 1.6mm width, and 1.6mm height. Operating temperature range spans from -55°C to +125°C. Packaged on a 7" reel with a 4mm pitch, this RoHS compliant component is suitable for general electronic applications.
Package1206
Capacitance4.7uF
Voltage Rating50V
MountingSurface Mount
Quick Jump:
Technical Specifications
Taiyo Yuden UMK316AB7475KL-T technical specifications.
General
| Capacitance | 4.7uF |
| Case Code (Imperial) | 1206 |
| Case Code (Metric) | 3216 |
| Package/Case | 1206 |
| Construction | Flat |
| Depth | 1.6mm |
| Dielectric | X7R |
| Height | 1.6mm |
| Length | 3.2mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | M |
| Termination | SMD/SMT |
| Tolerance | 10% |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
| Width | 1.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Taiyo Yuden UMK316AB7475KL-T Datasheet
Download the complete datasheet for Taiyo Yuden UMK316AB7475KL-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

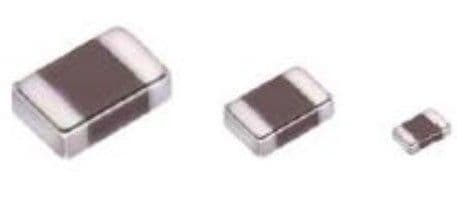

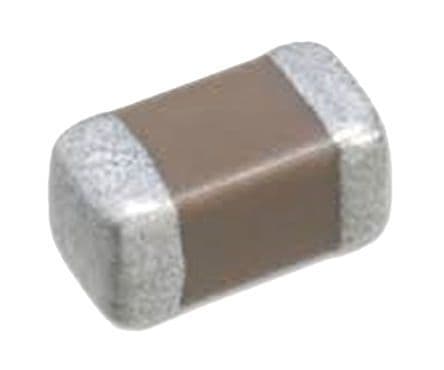

Product Images
