General purpose power transformer with 2.4VA rating. Features dual primary and dual secondary windings with PC pin termination for through-hole mounting. Dimensions include a 35.56mm length, 31mm width, and 32mm height. Maximum output current is 120mA. This component is lead-free and RoHS compliant.
MountingThrough Hole
Quick Jump:
Technical Specifications
Tamura 3FD-320 technical specifications.
General
| Height | 32mm |
| Height - Seated (Max) | 32.1mm |
| Lead Free | Lead Free |
| Length | 35.56mm |
| Max Output Current | 120mA |
| Mount | Through Hole |
| Packaging | Rail/Tube |
| Primary Winding(s) | Dual |
| RoHS Compliant | Yes |
| Secondary Winding(s) | Dual |
| Series | 3FD-3xx |
| Termination | PC Pin |
| Weight | 113g |
| Width | 31mm |
Compliance
| RoHS | Compliant |
Datasheet
Tamura 3FD-320 Datasheet
Download the complete datasheet for Tamura 3FD-320 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

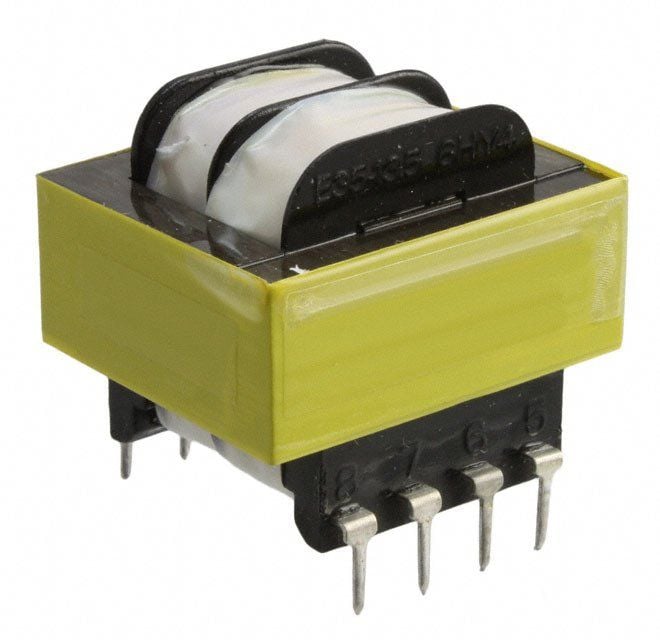

Product Images
