General purpose power transformer with 12VA rating. Features dual primary and dual secondary windings with PC pin termination for through-hole mounting. Dimensions include a height of 41.4mm (38mm seated max), length of 48.5mm, and width of 41.52mm. Maximum output current is 1.6A.
MountingThrough Hole
Quick Jump:
Technical Specifications
Tamura 3FD-516 technical specifications.
General
| Height | 41.4mm |
| Height - Seated (Max) | 38mm |
| Lead Free | Lead Free |
| Length | 48.5mm |
| Max Output Current | 1.6A |
| Mount | Through Hole |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Primary Winding(s) | Dual |
| RoHS Compliant | No |
| Secondary Winding(s) | Dual |
| Series | 3FD-5xx |
| Termination | PC Pin |
| Weight | 318g |
| Width | 41.52mm |
Compliance
| RoHS | Not Compliant |
Datasheet
Tamura 3FD-516 Datasheet
Download the complete datasheet for Tamura 3FD-516 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

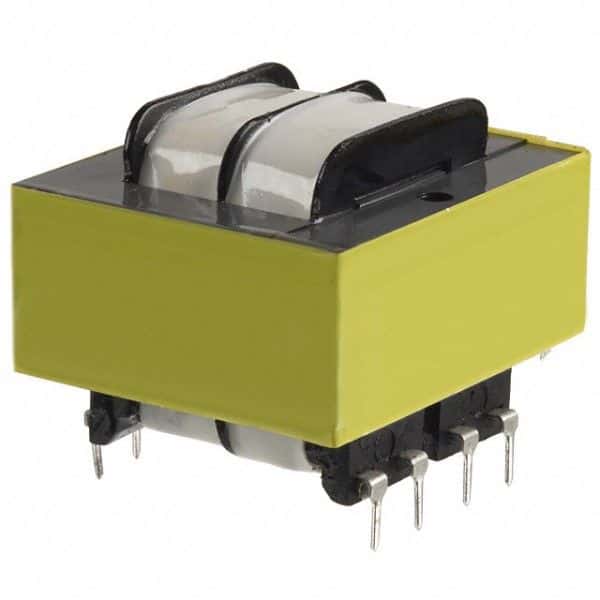

Product Images
