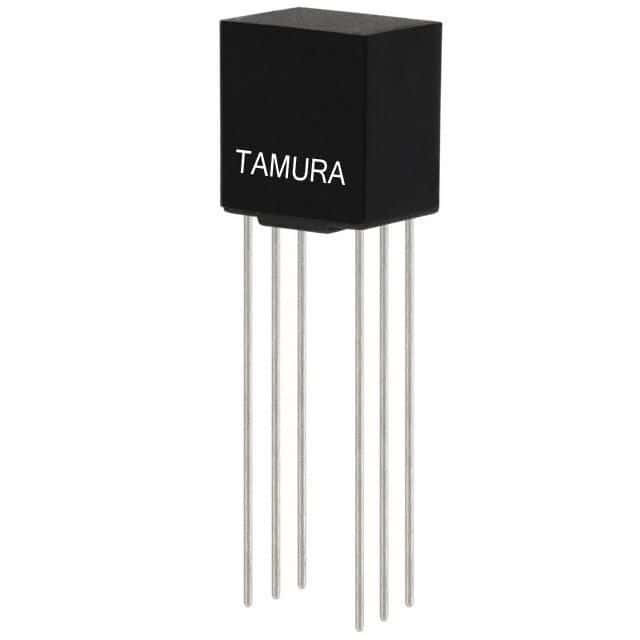

The MET-26 is an audio transformer with a current rating of 3mA and a DC resistance of 95 ohms. It is designed for through hole mounting and operates within a temperature range of -20°C to 85°C. The transformer has a primary impedance of 1kR and a secondary impedance of 1kR, with a turns ratio of 1:1.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Tamura MET-26 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Current Rating | 3mA |
| DC Resistance (DCR) | 95R |
| Height | 11.8mm |
| Lead Free | Lead Free |
| Length | 10.4mm |
| Max DC Current | 3mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -20°C |
| Mount | Through Hole |
| Operating Frequency | 0.3 to 100 kHz |
| Package Quantity | 50 |
| Packaging | Bulk |
| Primary Impedance | 1kR |
| RoHS Compliant | No |
| Secondary Impedance | 1kR |
| Series | MET |
| Termination | PC Pin |
| Turns Ratio | 1:1 |
| Width | 7.87mm |
| RoHS | Not Compliant |
