Through-hole mounted telecom transformer with 1:1 turns ratio, featuring 600 Ohm primary and secondary impedance. This component operates across a frequency range of 0.1 to 100 kHz, with a DC resistance of 85 Ohms. It offers an isolation voltage of 1.5kV and a maximum operating temperature of 85°C, with a minimum of -40°C. The compact dimensions include a height of 11.8mm, length of 10.4mm, and width of 7.87mm.
Frequency0.1 to 100 kHz
Package600
MountingThrough Hole
Quick Jump:
Technical Specifications
Tamura MET-46 technical specifications.
General
| Package/Case | 600 |
| DC Resistance (DCR) | 85R |
| Height | 11.8mm |
| Isolation Voltage | 1.5kV |
| Lead Free | Contains Lead |
| Length | 10.4mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Operating Frequency | 0.1 to 100 kHz |
| Package Quantity | 50 |
| Packaging | Bulk |
| Primary Impedance | 600R |
| RoHS Compliant | Yes |
| Secondary Impedance | 600R |
| Series | MET |
| Termination | PC Pin |
| Turns Ratio | 1:1 |
| Width | 7.87mm |
Compliance
| RoHS | Compliant |
Datasheet
Tamura MET-46 Datasheet
Download the complete datasheet for Tamura MET-46 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

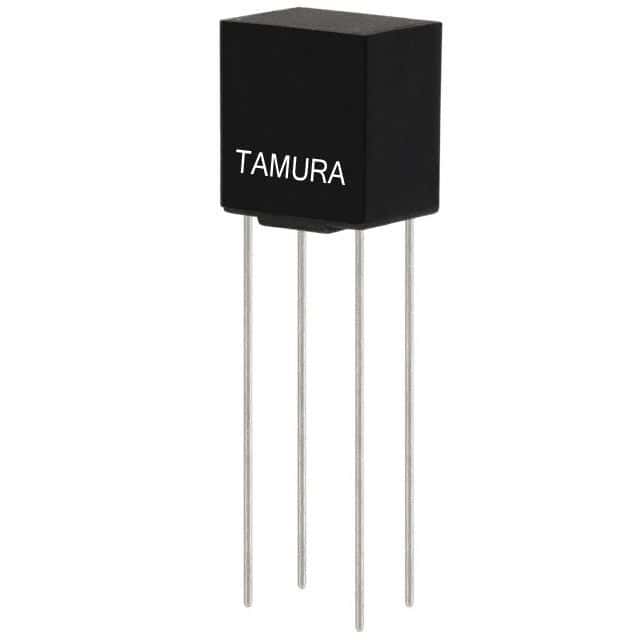

Product Images
