General Purpose Electromechanical Relay featuring a Single Pole Double Throw (SPDT) contact configuration. Coil operates at 24V DC with 16.67mA current and 400mW power, boasting a 1.44kΩ resistance. Contact ratings include 16A switching current and 250V AC contact voltage, with Silver/Gold contact material and Gold plating. This DIP package relay offers a 400V AC maximum voltage rating, 8ms operate time, 6ms release time, and operates within a -40°C to 85°C temperature range.
PackageDIP
MountingSocket
Quick Jump:
Technical Specifications
TE Connectivity 1-1393240-4 technical specifications.
General
| Package/Case | DIP |
| Coil Current | 16.67mA |
| Coil Power | 400mW |
| Coil Resistance | 1.44kR |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 24V |
| Contact Current Rating | 16A |
| Contact Material | Silver, Gold |
| Contact Plating | Gold |
| Contact Voltage Rating (AC) | 250V |
| Depth | 12.7mm |
| Dropout Voltage | 2.4V |
| ELV | Compliant |
| Height | 15.7mm |
| Length | 29mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 400V |
| Mount | Socket |
| Operate Time | 8ms |
| Package Quantity | 20 |
| Packaging | Carton |
| Ratings | IP54 |
| Reach SVHC Compliant | Unknown |
| Relay Type | General Purpose |
| Release Time | 6ms |
| RoHS Compliant | Yes |
| Series | RT1, SCHRACK |
| Switching Current | 16A |
| Termination | Plug |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 400V |
| Weight | 0.494oz |
| Width | 12.7mm |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 1-1393240-4 Datasheet
Download the complete datasheet for TE Connectivity 1-1393240-4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

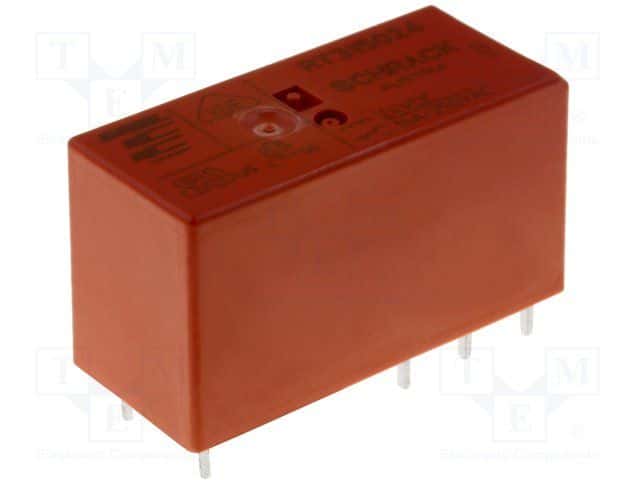

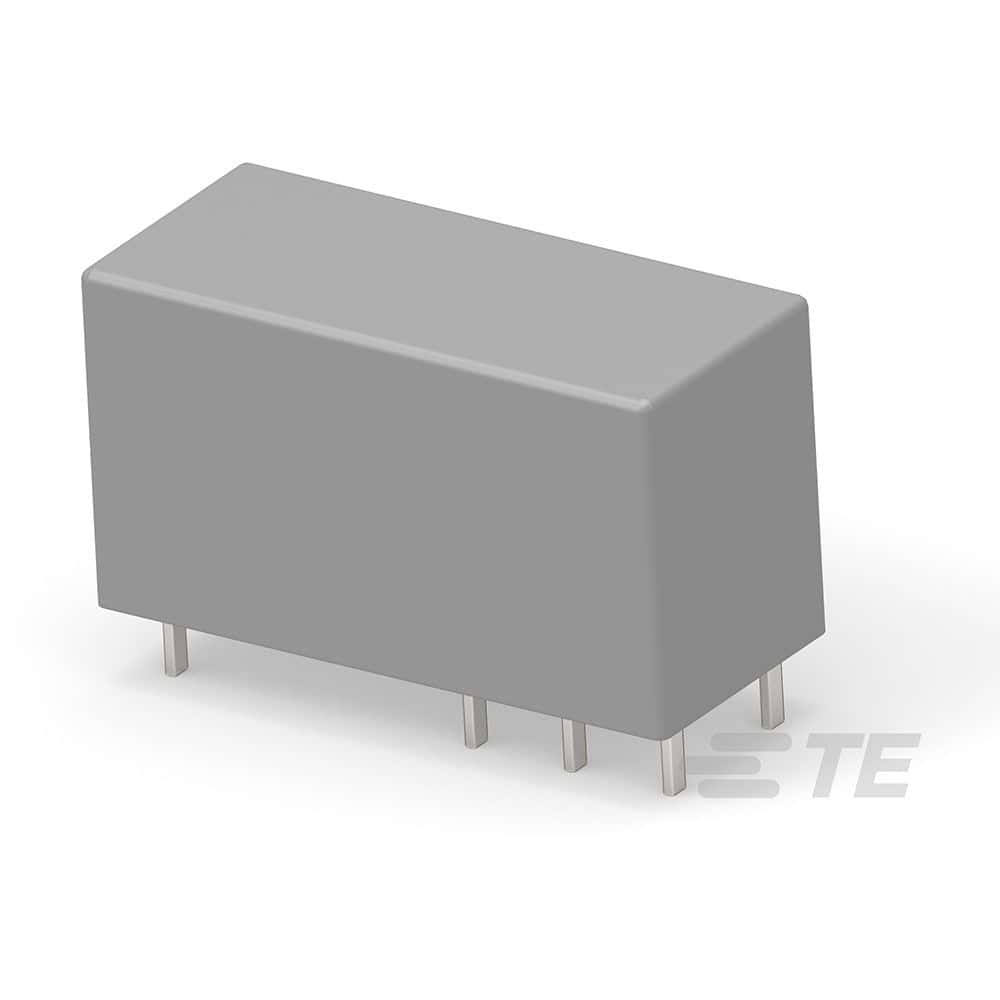

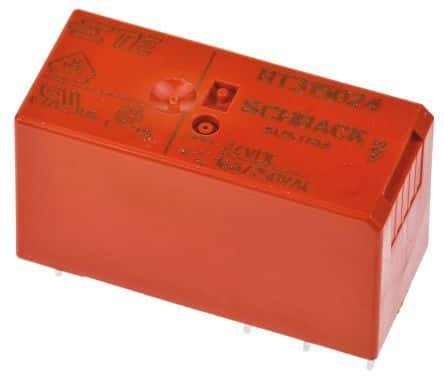

Product Images
