PCB-mount, through-hole signal relay featuring a non-latching coil type with 15V DC coil voltage, 7.5mA coil current, and 2kΩ coil resistance. Offers a 500mA contact current rating and 10W switching capacity with Ruthenium and Rhodium contact material. Operates within a -40°C to 85°C temperature range, with 0.75ms operate time and 0.15ms release time. DIP package, UL approved, RoHS and ELV compliant, with IP54 rating.
PackageDIP
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
TE Connectivity 1-1393763-2 technical specifications.
General
| Approvals | UL |
| Package/Case | DIP |
| Coil Current | 7.5mA |
| Coil Power | 113mW |
| Coil Resistance | 2kR |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 15V |
| Contact Current Rating | 500mA |
| Contact Material | Ruthenium, Rhodium |
| Depth | 6.4mm |
| ELV | Compliant |
| Height | 5.1mm |
| Length | 19.3mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, PCB |
| Operate Time | 0.75ms |
| Package Quantity | 25 |
| Ratings | IP54 |
| Relay Type | Reed |
| Release Time | 0.15ms |
| RoHS Compliant | Yes |
| Series | V23100-V4, AXICOM |
| Switching Capacity | 10W |
| Switching Current | 500mA |
| Termination | PC Pin |
| Throw Configuration | SPST |
| DC Rated Voltage | 15V |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 1-1393763-2 Datasheet
Download the complete datasheet for TE Connectivity 1-1393763-2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

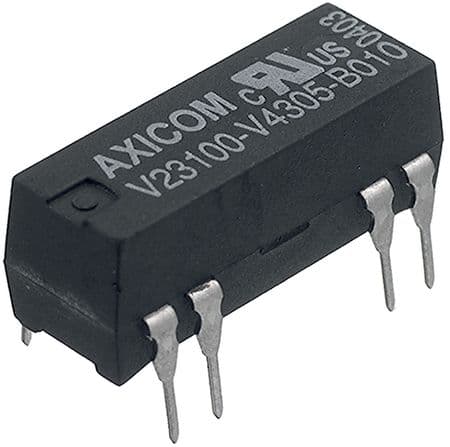

Product Images
