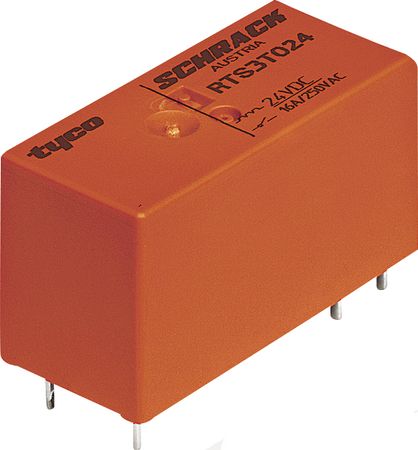

SPST-NO power relay with a 24VDC coil voltage and 16A contact current rating. Features include a 250VAC contact voltage rating, 400VAC maximum voltage rating, and tin/silver contact material. Operates within a -40°C to 85°C temperature range with a 10ms operate time and 5ms release time. DIP package with THT termination, suitable for socket mounting.
PackageDIP
MountingSocket
Power400mW
Quick Jump:
Technical Specifications
TE Connectivity 1-1415898-4 technical specifications.
General
Package/Case
DIP
Coil Current
16.67mA
Coil Power
400mW
Coil Resistance
1.44kR
Coil Type
Non-Latching
Coil Voltage (DC)
24V
Contact Current Rating
16A
Contact Material
Tin, Silver
Contact Type
1 maker
Contact Voltage Rating (AC)
250V
Depth
12.7mm
Dropout Voltage
2.4V
ELV
Compliant
Height
16mm
Length
29mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
400V
Mount
Socket
Operate Time
10ms
Package Quantity
500
Packaging
Carton
Power Consumption
400mW
Radiation Hardening
No
Ratings
IP54
Relay Type
General Purpose
Release Time
5ms
RoHS Compliant
Yes
Series
RT1, Inrush, SCHRACK
Switching Current
16A
Termination
Plug
Throw Configuration
SPST
Voltage Rating (AC)
400V
Weight
0.494oz
Width
12.7mm
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 1-1415898-4 Datasheet
Download the complete datasheet for TE Connectivity 1-1415898-4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
