General purpose electromechanical relay featuring a 5V DC coil with 80.6mA coil current and 500mW coil power. Offers a 16A contact current rating and 250V AC contact voltage rating, with tin/silver contact material. Designed for through-hole mounting with plug termination, this relay boasts a 10ms operate time and 5ms release time. Operating temperature range is -40°C to 85°C, and it is RoHS compliant.
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 1-1415898-6 technical specifications.
General
| Coil Current | 80.6mA |
| Coil Power | 500mW |
| Coil Resistance | 62R |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 5V |
| Contact Current Rating | 16A |
| Contact Material | Tin, Silver |
| Contact Voltage Rating (AC) | 250V |
| Dropout Voltage | 500mV |
| ELV | Compliant |
| Height | 15.7mm |
| Lead Free | Lead Free |
| Length | 29mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Operate Time | 10ms |
| Package Quantity | 1000 |
| Packaging | Carton |
| Relay Type | General Purpose |
| Release Time | 5ms |
| RoHS Compliant | Yes |
| Series | RT1, Inrush, SCHRACK |
| Termination | Plug |
| Throw Configuration | SPST |
| Weight | 0.494oz |
| Width | 12.7mm |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 1-1415898-6 Datasheet
Download the complete datasheet for TE Connectivity 1-1415898-6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

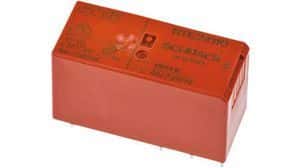

Product Images
