General purpose electromechanical relay featuring a 5V DC coil voltage, 84mA coil current, and 60Ω coil resistance. This relay offers a 16A contact current rating with silver contacts and a 250V AC contact voltage rating. Designed for through-hole mounting with PCB termination, it has a SPDT throw configuration and a 400V AC maximum voltage rating. Operating within a -40°C to 85°C temperature range, it boasts an 8ms operate time and 6ms release time.
PackageDIP
Current Rating16A
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 1-1415899-9 technical specifications.
General
Package/Case
DIP
Coil Current
84mA
Coil Power
500mW
Coil Resistance
60R
Coil Type
Non-Latching
Coil Voltage (DC)
5V
Contact Current Rating
16A
Contact Material
Silver
Contact Voltage Rating (AC)
250V
Current Rating
16A
Depth
12.7mm
ELV
Compliant
Height
15.7mm
Lead Free
Lead Free
Length
29mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
400V
Mount
Through Hole
Number of Contacts
1
Operate Time
8ms
Package Quantity
20
Packaging
Carton
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Relay Type
General Purpose
Release Time
6ms
RoHS Compliant
Yes
Series
RZ, SCHRACK
Termination
PCB
Throw Configuration
SPDT
Voltage Rating (AC)
400V
DC Rated Voltage
5V
Weight
0.353oz
Width
12.7mm
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 1-1415899-9 Datasheet
Download the complete datasheet for TE Connectivity 1-1415899-9 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

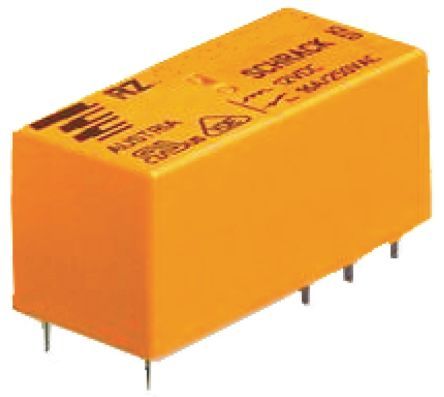

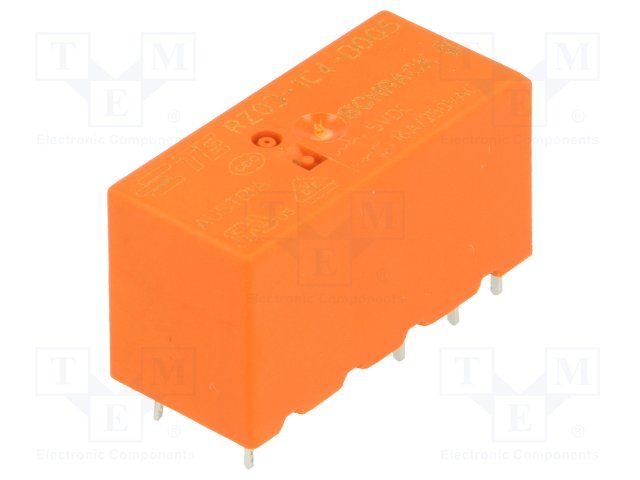

Product Images
