DPDT signal relay with a 5VDC coil voltage, 2A contact current rating, and 250VAC/220VDC voltage rating. Features gold-plated contacts for reliable switching and a 140mW coil power consumption. Through-hole mounting with a DIP package, this relay offers a 3ms operate and release time and a long mechanical life of 50,000,000 hours. Operating temperature range is -40°C to 85°C, with RoHS and ELV compliance.
PackageDIP
MountingThrough Hole, PCB
Power140mW
Quick Jump:
Technical Specifications
TE Connectivity 1-1462033-4 technical specifications.
General
| Package/Case | DIP |
| Coil Current | 28.09mA |
| Coil Power | 140mW |
| Coil Resistance | 178R |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 5V |
| Contact Current Rating | 2A |
| Contact Material | Gold, Ruthenium, Silver |
| Contact Plating | Gold |
| Depth | 9mm |
| ELV | Compliant |
| Height | 5mm |
| Length | 14mm |
| Life (Hours) | 50000000Hour |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, PCB |
| Operate Time | 3ms |
| Package Quantity | 1000 |
| Packaging | Rail/Tube |
| Power Consumption | 140mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Relay Type | Telecom |
| Release Time | 3ms |
| RoHS Compliant | Yes |
| Series | FP2, AXICOM |
| Termination | PC Pin |
| Throw Configuration | DPDT |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 220V |
| Width | 9mm |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 1-1462033-4 Datasheet
Download the complete datasheet for TE Connectivity 1-1462033-4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

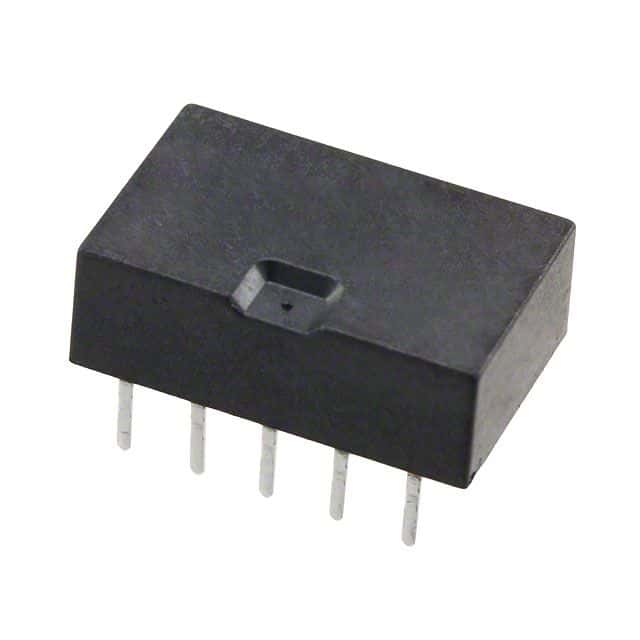

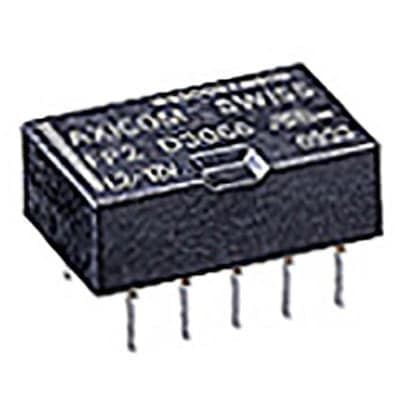

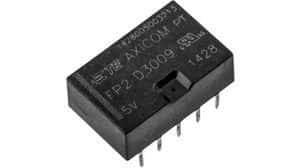

Product Images
