DPDT signal relay with a 24VDC coil voltage and 2A contact current rating. Features gold-plated contacts with a gold/ruthenium material composition, rated for 220VDC and 250VAC. Through-hole mounting for PCB termination, with a compact 10x5.7x5.8mm footprint. Operate and release times are 3ms, with a coil power of 200mW and resistance of 2.88kR. Operating temperature range is -40°C to 85°C.
Current Rating2A
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
TE Connectivity 1-1462038-7 technical specifications.
General
| Actuating System | DC |
| Coil Current | 8.3mA |
| Coil Power | 200mW |
| Coil Resistance | 2.88kR |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 24V |
| Contact Current Rating | 2A |
| Contact Material | Gold, Ruthenium |
| Contact Plating | Gold |
| Contact Voltage Rating (DC) | 220V |
| Current Rating | 2A |
| Depth | 5.7mm |
| ELV | Compliant |
| Height | 5.8mm |
| Insertion Loss | -0.03dB |
| Length | 10inch |
| Max Current Rating | 2A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 220V |
| Mount | Through Hole, PCB |
| Operate Time | 3ms |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | Unknown |
| Relay Type | Relay |
| Release Time | 3ms |
| RoHS Compliant | Yes |
| Series | IM, AXICOM |
| Termination | PCB |
| Throw Configuration | DPDT |
| DC Rated Voltage | 24V |
| Weight | 0.75oz |
| Width | 0.224inch |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 1-1462038-7 Datasheet
Download the complete datasheet for TE Connectivity 1-1462038-7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

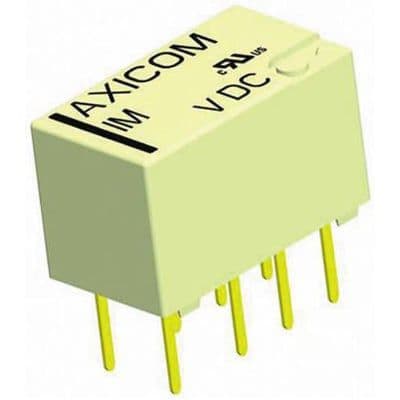

Product Images
