This is a 6-position, 6-circuit rotary and slide actuator DIP switch featuring a PIANO actuator type and straight orientation. It offers a 1A contact current rating with gold-plated copper alloy contacts and a 4mm contact post length. The switch has a 0.1-inch pitch, through-hole mounting, and PC pin termination, with a DC rated voltage of 5V and a maximum current rating of 100mA. Constructed with a polyphenylene body and black housing, it boasts a UL94 V-0 flammability rating and is washable and RoHS compliant.
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 1-1571999-6 technical specifications.
General
| Actuator Type | PIANO |
| Body Material | Polyphenylene |
| Contact Current Rating | 1A |
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
| Contact Post Length | 4mm |
| Depth | 10.26mm |
| Electrical Life | 1000Cycles |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Height | 0.236inch |
| Housing Color | Black |
| Lead Free | Lead Free |
| Length | 17.22mm |
| Max Current Rating | 100mA |
| Max Operating Temperature | 85°C |
| Mechanical Life | 1000Cycles |
| Min Operating Temperature | -30°C |
| Mount | Through Hole |
| Number of Circuits | 6 |
| Number of Positions | 6 |
| Orientation | Straight |
| Package Quantity | 25 |
| Packaging | Rail/Tube |
| Pitch | 0.1inch |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Sealable | No (Without) |
| Series | ADP |
| Termination | PC Pins |
| Throw Configuration | SPST |
| Type | Switch |
| DC Rated Voltage | 5V |
| Washable | Yes |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 1-1571999-6 Datasheet
Download the complete datasheet for TE Connectivity 1-1571999-6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

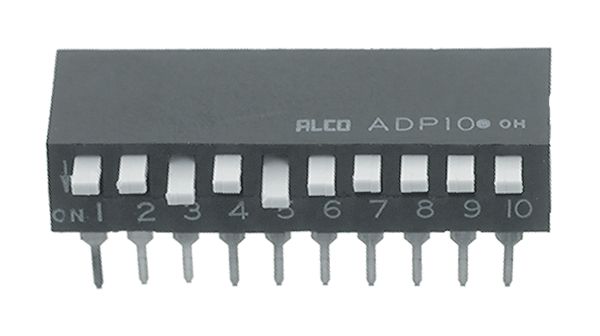

Product Images
