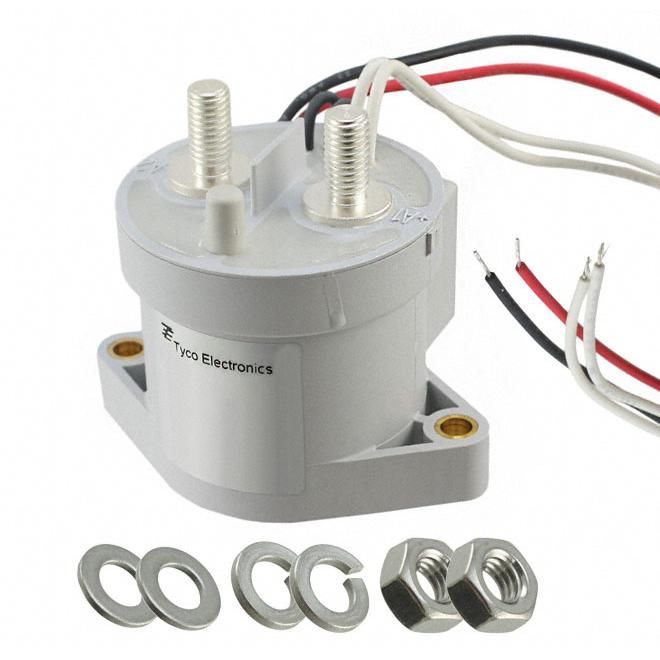

High-power electromechanical relay featuring a Single Pole Single Throw (SPST) configuration for general-purpose applications. This panel-mount contactor offers a robust 500A contact current rating and a 2.2kV DC switching voltage, suitable for high-voltage systems. It operates with a 12VDC coil at 130mA and 15ms operate time, with a 12ms release time. Constructed with copper contacts and a stud termination, this RoHS compliant component is designed for operation between -40°C and 85°C.
MountingPanel
Quick Jump:
Technical Specifications
TE Connectivity 1-1618002-8 technical specifications.
General
| Application(s) | HIGH VOLTAGE |
| Coil Current | 130mA |
| Coil Resistance | 3.14R |
| Coil Type | Non-Latching |
| Coil Voltage (AC) | 2.2kV |
| Coil Voltage (DC) | 12V |
| Contact Current Rating | 500A |
| Contact Material | Copper |
| Depth | 65.6mm |
| ELV | Compliant |
| Height | 72.3mm |
| Lead Free | Lead Free |
| Length | 80.48mm |
| Max Current Rating | 500A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (DC) | 2.2kV |
| Mount | Panel |
| Number of Contacts | 1 |
| Number of Poles | 1 |
| Operate Time | 15ms |
| Package Quantity | 1 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Relay Type | Contactor |
| Release Time | 12ms |
| RoHS Compliant | Yes |
| Series | EV200, KILOVAC |
| Switching Current | 500A |
| Switching Voltage | 2.2kV |
| Termination | Stud |
| Throw Configuration | SPST |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 1-1618002-8 Datasheet
Download the complete datasheet for TE Connectivity 1-1618002-8 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
