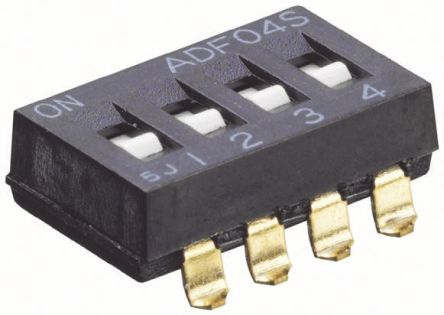

Surface mount rotary and slide actuator DIP switch featuring 4 circuits and 4 positions. This SPST switch offers a 100mA current rating at 24V DC, with a contact current rating of 1A and a switching capacity of 400mW. Constructed with a polyamide actuator and polyphenylene body, it boasts gold-plated copper alloy contacts and a gull wing termination. Operating between -30°C and 85°C, this RoHS compliant, washable, and sealable component is supplied on tape and reel.
Current Rating100mA
MountingSurface Mount
Quick Jump:
Technical Specifications
TE Connectivity 1-1825059-7 technical specifications.
General
Actuator Length
0mm
Actuator Material
Polyamide
Actuator Type
Slide (Standard)
Body Material
Polyphenylene
Contact Current Rating
1A
Contact Material
Copper Alloy
Contact Plating
Gold
Current Rating
100mA
Depth
9.3mm
Electrical Life
1000Cycles
ELV
Compliant
Flammability Rating
UL94 V-0
Height
0.138inch
Housing Color
Black
Lead Free
Lead Free
Length
12.14mm
Max Current Rating
100mA
Max Operating Temperature
85°C
Min Operating Temperature
-30°C
Max Voltage Rating (DC)
24V
Mechanical Life
1000Cycles
Mount
Surface Mount
Number of Circuits
4
Number of Positions
4
Orientation
Straight
Package Quantity
35
Packaging
Tape and Reel
Pitch
0.1inch
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Sealable
Yes (With)
Series
ADF
Switching Capacity
400mW
Terminal Pitch
2.54mm
Termination
Gull Wing
Throw Configuration
SPST
Type
Switch
DC Rated Voltage
5V
Washable
Yes
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 1-1825059-7 Datasheet
Download the complete datasheet for TE Connectivity 1-1825059-7 to view detailed technical specifications.
