40A, 250VAC power line filter designed for EMI/RFI suppression. Features 2.3mH inductance, 750uA leakage current, and operates at 50/60Hz. Chassis mountable with threaded termination and UL approval. Compliant with ELV and lead-free standards, operating between -10°C and 40°C.
Frequency50/60Hz
Current40A
Current Rating40A
MountingChassis Mount, Flanges
Quick Jump:
Technical Specifications
TE Connectivity 1-6609036-6 technical specifications.
General
| Approvals | UL |
| Current | 40A |
| Current Rating | 40A |
| Depth | 100.6mm |
| ELV | Compliant |
| Inductance | 2.3mH |
| Lead Free | Lead Free |
| Leakage Current | 750uA |
| Length | 152.4mm |
| Max Current Rating | 40A |
| Max Operating Temperature | 40°C |
| Min Operating Temperature | -10°C |
| Max Voltage Rating (AC) | 250V |
| Mount | Chassis Mount, Flanges |
| Operating Frequency | 50/60Hz |
| Package Quantity | 4 |
| RoHS Compliant | Yes |
| Series | SK |
| Termination | Threaded |
| Voltage Rating (AC) | 250V |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 1-6609036-6 Datasheet
Download the complete datasheet for TE Connectivity 1-6609036-6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

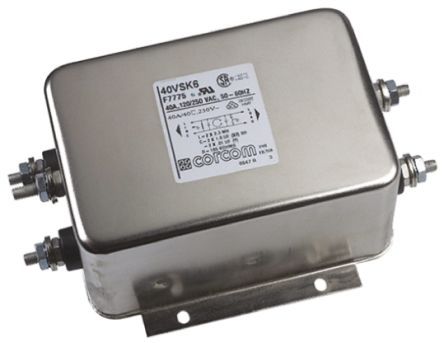

Product Images
