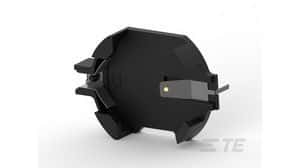

1-cell battery holder for PCB mounting, featuring a right-angle, horizontal orientation and a thermoplastic box/tray housing. Designed for signal circuit applications, this female connector system offers a 2.54mm pitch and accepts a 30V maximum voltage rating with a 7A contact current rating. Contacts are made of bronze with tin plating for termination and mating, ensuring reliable connections. The black housing meets UL94 V-0 flammability rating and operates within a temperature range of -30°C to 70°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the TE Connectivity 120591-1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
TE Connectivity 120591-1 technical specifications.
| Circuit Application | Signal |
| Color | Black |
| Connector System | Board-to-Board |
| Contact Current Rating | 7A |
| Contact Finish - Mating | TIN |
| Contact Finish - Termination | TIN |
| Contact Gender | Female |
| Contact Material | Bronze |
| Contact Plating | Tin |
| Depth | 19.05mm |
| DIN Conformance | No |
| Filter Feature | No |
| Flammability Rating | UL94 V-0 |
| Gender | Female |
| Housing Color | Black |
| IEC Conformance | No |
| Lead Free | Lead Free |
| Length | 27.3mm |
| Manufacturer Series | 120591 |
| Material | Bronze |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -30°C |
| Max Voltage Rating (AC) | 30V |
| MIL Conformance | No |
| Mixed Contacts | No |
| Mount | Through Hole, PCB, Board |
| Mounting Style | HORIZONTAL |
| Number of Cells | 1 |
| Number of Contacts | 2 |
| Number of Ports | 1 |
| Number of Positions | 2 |
| Option | General Purpose |
| Orientation | Right Angle |
| Package Quantity | 144 |
| Packaging | Tray |
| PCB Mount Retention | Without |
| Pitch | 2.54mm |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | AMP |
| Termination | Solder |
| Voltage Rating | 30V |
| RoHS | Compliant |
