Signal relay featuring a 5A contact current rating and 400V AC voltage rating. This SPDT electromechanical relay offers a 5V AC/DC coil voltage with 40mA coil current and 200mW coil power. Designed for through-hole PCB mounting, it boasts an 8ms operate and release time, operating within a -40°C to 85°C temperature range. The relay is RoHS compliant and IP54 rated.
Current Rating5A
MountingThrough Hole, PCB
Power200mW
Quick Jump:
Technical Specifications
TE Connectivity 1393219-3 technical specifications.
General
| Coil Current | 40mA |
| Coil Power | 200mW |
| Coil Resistance | 125R |
| Coil Type | Non-Latching |
| Coil Voltage (AC) | 5V |
| Coil Voltage (DC) | 5V |
| Contact Current Rating | 5A |
| Contact Material | Silver, Agni90/10 |
| Contact Type | 1 change-over |
| Current Rating | 5A |
| Depth | 10mm |
| Dropout Voltage | 500mV |
| ELV | Compliant |
| Height | 10mm |
| Lead Free | Lead Free |
| Length | 20mm |
| Max Current Rating | 5A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 400V |
| Mount | Through Hole, PCB |
| Number of Contacts | 1 |
| Number of Poles | 1 |
| Operate Time | 8ms |
| Package Quantity | 25 |
| Packaging | Rail/Tube |
| Power Consumption | 200mW |
| Radiation Hardening | No |
| Ratings | IP54 |
| Reach SVHC Compliant | Unknown |
| Relay Type | General Purpose |
| Release Time | 8ms |
| RoHS Compliant | Yes |
| Series | PE, SCHRACK |
| Switching Current | 5A |
| Switching Voltage | 400V |
| Termination | PC Pin |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 400V |
| DC Rated Voltage | 5V |
| Width | 10mm |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 1393219-3 Datasheet
Download the complete datasheet for TE Connectivity 1393219-3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

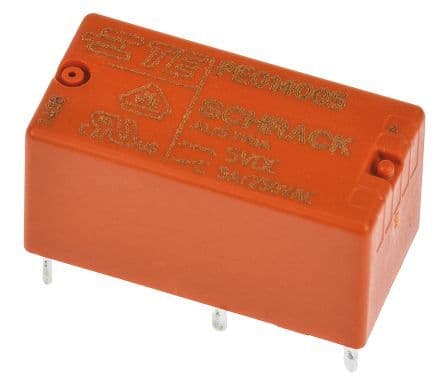

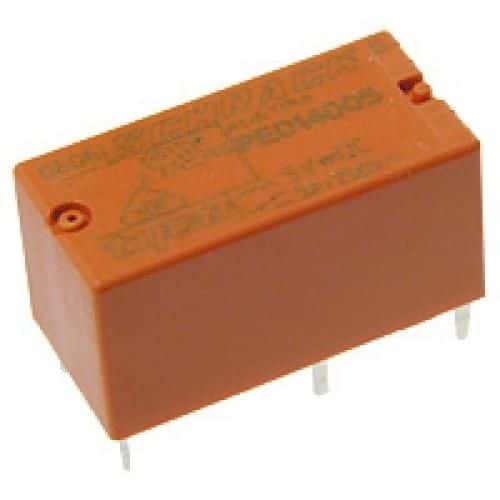

Product Images
