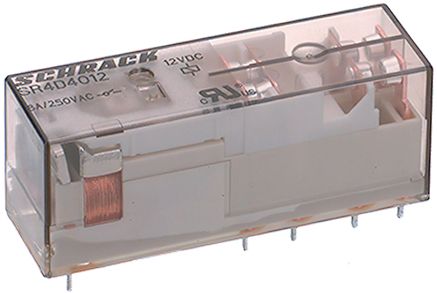

Safety relay featuring a 4PST (4 Pole Single Throw) configuration with momentary operation. Coil specifications include 12VDC, 0.067A (66.67mA), and 800mW (1W) power consumption, with a coil resistance of 180 Ohms. Contact ratings are 8A switching current at 250VAC, with Tin/Silver contact material. This through-hole mount component offers a contact voltage rating of 400VAC and operates within a temperature range of -25°C to 70°C. It is RoHS compliant and rated IP67.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the TE Connectivity 1415055-1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
TE Connectivity 1415055-1 technical specifications.
| Coil Current | 66.67A |
| Coil Power | 1W |
| Coil Resistance | 180R |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 12V |
| Contact Current Rating | 8A |
| Contact Material | Tin, Silver |
| Contact Voltage Rating (AC) | 250V |
| Depth | 13mm |
| ELV | Compliant |
| Height | 16.5mm |
| Lead Free | Lead Free |
| Length | 1.575inch |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (AC) | 400V |
| Mount | Through Hole, PCB |
| Number of Contacts | 4 |
| Package Quantity | 10 |
| Packaging | Rail/Tube |
| Ratings | IP67 |
| Reach SVHC Compliant | Unknown |
| Relay Type | Safety RELAY |
| RoHS Compliant | Yes |
| Series | SR4, SCHRACK |
| Switching Current | 8A |
| Termination | PCB |
| Throw Configuration | DPST, 4PST |
| Weight | 30g |
| Width | 0.512inch |
| RoHS | Compliant |
