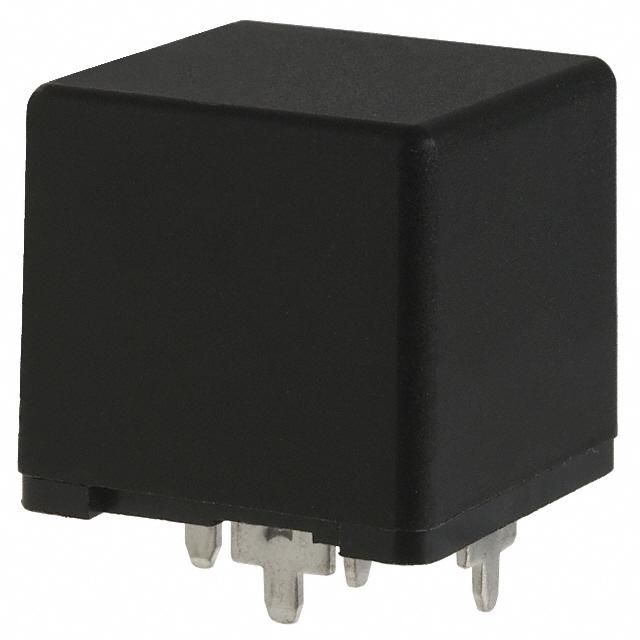

SPDT automotive power relay featuring a 24VDC coil voltage and 40A contact current rating. This general-purpose relay offers a non-latching coil type with 66.7mA coil current and 360 Ohm coil resistance. Contact material is tin/silver, with a through-hole mount and solder termination. Operating temperature range is -40°C to 85°C, with operate and release times of 8ms and 5ms respectively.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the TE Connectivity 1432870-1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Coil Current | 66.7mA |
| Coil Resistance | 360R |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 24V |
| Contact Current Rating | 40A |
| Contact Material | Tin, Silver |
| Depth | 26.5mm |
| Height | 24.5mm |
| Lead Free | Lead Free |
| Length | 26.5mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Mounting Style | SOCKET |
| Operate Time | 8ms |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Relay Type | General Purpose |
| Release Time | 5ms |
| RoHS Compliant | Yes |
| Series | VF4 |
| Termination | Solder |
| Throw Configuration | SPDT |
| Width | 26.5mm |
| RoHS | Compliant |
