Surface mount RF relay featuring a 3V DC coil voltage, 140mW coil power, and 46.88mA coil current. This non-latching relay offers a 2A contact current rating with gold-plated nickel contacts and a 220V DC / 250V AC voltage rating. Designed for general RF applications, it exhibits a low insertion loss of -0.03dB and operates within a -55°C to 85°C temperature range. Termination is via PCB, with a 5ms operate time and 4ms release time.
MountingSurface Mount
Quick Jump:
Technical Specifications
TE Connectivity 1462051-1 technical specifications.
General
Actuating System
DC
Coil Current
46.88mA
Coil Power
140mW
Coil Resistance
64R
Coil Type
Non-Latching
Coil Voltage (DC)
3V
Contact Current Rating
2A
Contact Material
Nickel
Contact Plating
Gold
Contact Voltage Rating (DC)
220V
Depth
9.4mm
ELV
Compliant
Height
10mm
Insertion Loss
-0.03dB
Lead Free
Lead Free
Length
14.6inch
Max Current Rating
2A
Max Operating Temperature
85°C
Min Operating Temperature
-55°C
Max Voltage Rating (AC)
250V
Max Voltage Rating (DC)
220V
Mount
Surface Mount
Operate Time
5ms
Packaging
Box
Relay Type
Relay
Release Time
4ms
RoHS Compliant
Yes
Series
HF3, AXICOM
Termination
PCB
Throw Configuration
SPDT
Voltage Rating (AC)
250V
Weight
2.5oz
Width
7.2mm
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 1462051-1 Datasheet
Download the complete datasheet for TE Connectivity 1462051-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

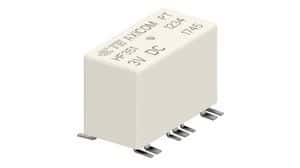

Product Images
