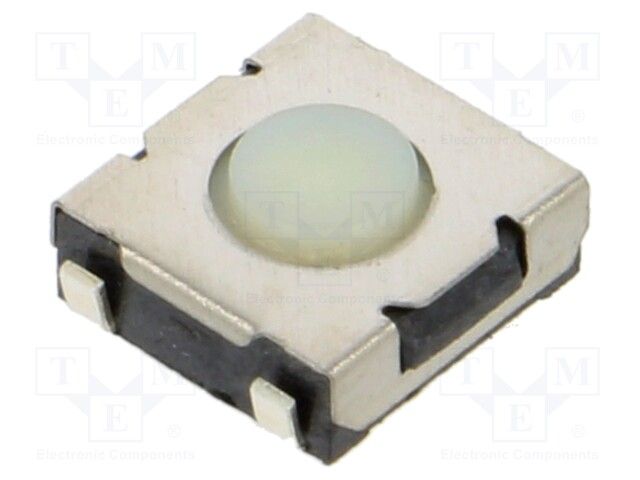

Tactile switch, SPST, non-illuminated, with a round button and J-lead termination. Features a 50mA contact current rating at 12VDC, a 0.49N operating force, and a 0.2mm switch travel. Constructed with a polyamide actuator and stainless steel contacts with silver plating. Designed for surface mount (SMD/SMT) with a straight orientation, offering 2 million electrical and mechanical cycles. Operates within a temperature range of -35°C to 85°C and is RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the TE Connectivity 1571625-1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Actuator Length | 0.02inch |
| Actuator Material | Nylon |
| Actuator Type | Standard |
| Package/Case | SMD/SMT |
| Contact Current Rating | 50mA |
| Contact Material | Stainless Steel |
| Contact Plating | Silver |
| Current Rating | 50mA |
| Depth | 6.8mm |
| Electrical Life | 2000000Cycles |
| ELV | Compliant |
| Illumination Type | Non-Illuminated |
| Length | 6.2mm |
| Material | Polyamide |
| Max Current Rating | 50mA |
| Max Operating Temperature | 85°C |
| Mechanical Life | 2000000Cycles |
| Min Operating Temperature | -35°C |
| Max Voltage Rating (DC) | 12V |
| Mount | Surface Mount |
| Operating Force | 0.49N |
| Orientation | Straight |
| Package Quantity | 2000 |
| Packaging | Loose Piece |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | Extended Life |
| Switch Function | Off-Mom |
| Switch Travel | 0.2mm |
| Termination | J-Lead |
| Throw Configuration | SPST |
| Type | Switch |
| DC Rated Voltage | 24V |
| RoHS | Compliant |
